Inconel 601 Pipe Fittings

  • Home
  • Inconel Pipe Fittings

601 Inconel LR Elbow, Nickel Alloyl 601 Buttweld Fittings, Inconel 601 Elbow, Ready Stock Of Alloy 601 Pipe Fittings, Manufacturer of ASTM B366 Inconel Alloy 601 Pipe Elbow Supplier in Mumbai.

Unifit Metal Alloys is supplier and exporter of Inconel Alloy 601 Pipe Fittings, which has a high curie temperature as well as good magneto-abstractive properties. Inconel UNS N06601 Elbow Pipe Fittings is commonly found in support wires, pins, terminals, hoover tube components, lead wires, and other similar electronic components. Because corrosion rates in both marine and rural environments are very low, this alloy has excellent resistance to corrosion by distilled and natural waters. The hot working temperatures for this product must be between 1200 degrees Fahrenheitand 2250 degrees Fahrenheit, by means of having heavy shaping done at temperatures exceeding 1600 degrees Fahrenheit. Caustic evaporators, platter bars, combustion boats, and electronic parts all employ this steel.It is a high purity nickel alloy that is widely used in electrical resistant thermometers.

UNS N06601 Buttweld Fittings, Inconel® Alloy 601 Reducer, DIN 2.4851 Stub End, Nickel Alloy 601 Short Radius Elbow, ANSI B16.9 Inconel 601 Welded Fittings, Alloy 601 Pipe Cap, 601 Inconel Pipe Fittings, Grade 601 Inconel 90 Degree Elbow Manufacturer In Mumbai, India.

Inconel WNR 2.4851 Tee Pipe Fittings also provides excellent service in moving sea water, even at high velocity, but in stagnant or very low velocity sea water, severe local attack under fouling organisms or other deposits may occur. It is also used in the electrolysis of caustic soda from salt solutions and subsequent concentration processes. These products are resistant to corrosion by distilled water, natural water, and flowing seawater, but are vulnerable to corrosion by stagnant seawater. Because these properties, combined with good weld ability, make the metal highly fabric able, this annealed alloy has a low hardness, good ductility and malleability.

Corrosion rates of this Nickel Alloy 601 Reducer Pipe Fittings will be initially high in hot water systems where the steam covers air and carbon dioxide in some proportions, but will decrease over time if conditions favour the formation of a protective film. When selecting the anneal temperature for this product, keep in mind that time-at-temperature can have a significant impact on the mechanical properties and structure of the material.This steel's low carbon content protects it from inter-granular corrosion in applications where substantial cross sections cannot be hardened when welding or where squat temperature stress relieving actions are desired. This steel should be annealed at temperatures ranging from 1300 to 1600 degrees Fahrenheit.

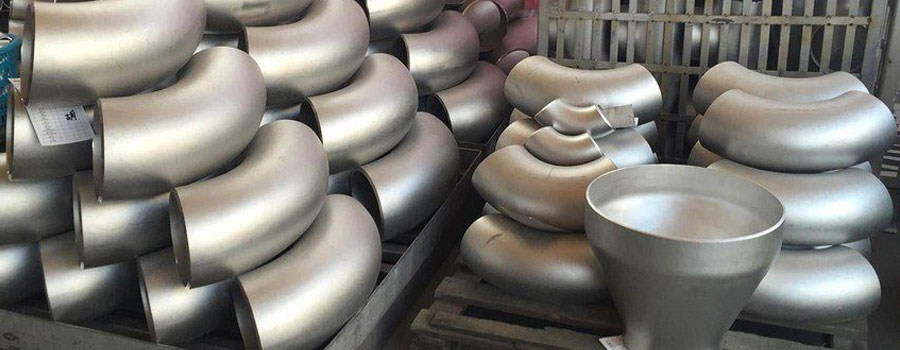

Inconel 601 Pipe Fittings

Get a best quote for Inconel 601 Seamless Fittings, We Keep Bulk Stock of Inconel Alloy 601 Buttweld Pipe Fittings at our stockyard, contact us to request a quote.

Inconel Alloy 601 Pipe Fittings Specifications

Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size Seamless Fittings: 1/2" - 10"
Welded Fittings: 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Manufacturing Standards ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200
BS : BS4504, BS4504, BS1560, BS10
JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316
GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380
EN: EN10253-1, EN10253-2
Types Seamless / ERW / Welded / Fabricated
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Elbow Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process Push, Press, Forge, Cast, etc.
Specialized manufacturer of 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Inconel 601 Pipe Fittings Equivalent Grades

STANDARD UNS WERKSTOFF NR. JIS AFNOR BS GOST EN
Inconel Alloy 601 N06601 2.4851 NCF 601 NC23FeA NA 49 XH60BT NiCr23Fe

Inconel Alloy 601 Butt weld Fittings Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr
Inconel 601 0.10 max 1.0 max 0.5 max 0.015 max 1.0 max Balance 58.0 – 63.0 21.0 – 25.0

601 Inconel Pipe Fittings Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 601 8.1 g/cm3 1411 °C (2571 °F) Psi – 80,000 , MPa – 550 Psi – 30,000 , MPa – 205 30 %

Various Types Of Inconel Alloy 601 Pipe Fittings

Inconel 601 Elbow

Inconel 601 Elbow

UNS N06601 90 Degree Elbow Alloy 601 Pipe Elbow ANSI B16.9 Inconel Alloy 601 Buttweld Elbow DIN 2.4851 45 Degree Pipe Elbow
Inconel 601 Reducer

Inconel 601 Reducer

ANSI B16.9 601 Inconel Buttweld Reducers Nickel Alloy 601 Butt weld Concentric Reducer UNS N06601 Reducers DIN 2.4851 Butt weld Eccentric Reducer
Inconel 601 Tee

Inconel 601 Tees

UNS N06601 Buttweld Equal Tee DIN 2.4851 Butt weld Unequal Tee Grade 601 Inconel Reducing Tees ANSI B16.9 Inconel Alloy 601 Buttweld Tees
Inconel 601 Cross

Inconel 601 Cross

ANSI B16.9 Alloy 601 Buttweld Cross Inconel® Alloy 601 Equal Cross UNS N06601 Reducing Cross DIN 2.4851 Buttweld Pipe Cross
Inconel 601 Stub End

Inconel 601 Stub End

ANSI B16.9 Inconel Alloy 601 Buttweld Stub End UNS N06601 Short Stub End DIN 2.4851 Lap Joint Stub End Inconel 601 Long Stub End
Inconel 601 Pipe Cap

Inconel 601 Pipe Cap

UNS N06601 Buttweld Pipe Cap ANSI B16.9 Nickel Alloy 601 Buttweld Pipe Cap DIN 2.4851 End Cap 601 Inconel Buttweld Cap
Inconel 601 Bend

Inconel 601 Bend

DIN 2.4851 Hot Induction Bend ANSI B16.9 Inconel 601 Buttweld Bend UNS N06601 Piggable Bend Alloy 601 Long Radius Bend
Inconel 601 Nipple

Inconel 601 Nipple

Inconel® Alloy Pipe Nipple UNS N06601 Butt weld Swage Nipple ANSI B16.9 Alloy 601 Buttweld Nipple DIN 2.4851 Barrel Nipple

Inconel Alloy 601 Pipe Fittings Thickness Chart

Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.56 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91
Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31
