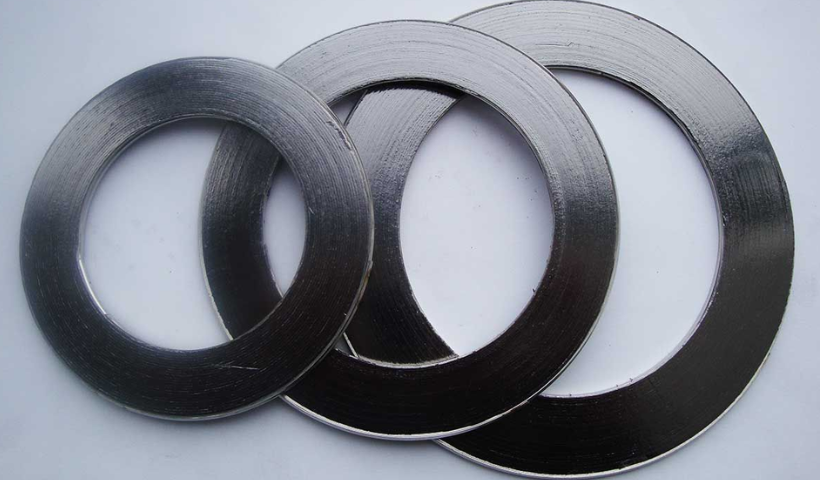

Carbon Steel Spiral Wound Gaskets, Carbon Steel Spiral Wound Gasket Supplier in Mumbai, India
Unifit Metal Alloys is a manufacturer, supplier, stockist and exporter of Carbon Steel Spiral Wound Gaskets in Mumbai, India, supplying sealing products for industrial piping, process equipment and pressure applications. These gaskets are manufactured using carbon steel winding strips combined with suitable filler materials. Their construction is designed to provide a secure seal between mating flange surfaces. We offer different sizes, thicknesses and configurations for various industrial requirements.
Carbon Steel Spiral Wound Gaskets provide good mechanical strength and dependable sealing performance in suitable operating environments. The metallic winding gives the gasket structural support, while the selected filler helps maintain sealing efficiency under pressure. Different filler materials can be chosen according to temperature and service conditions. These gaskets are suitable for general industrial flange connections and process systems.

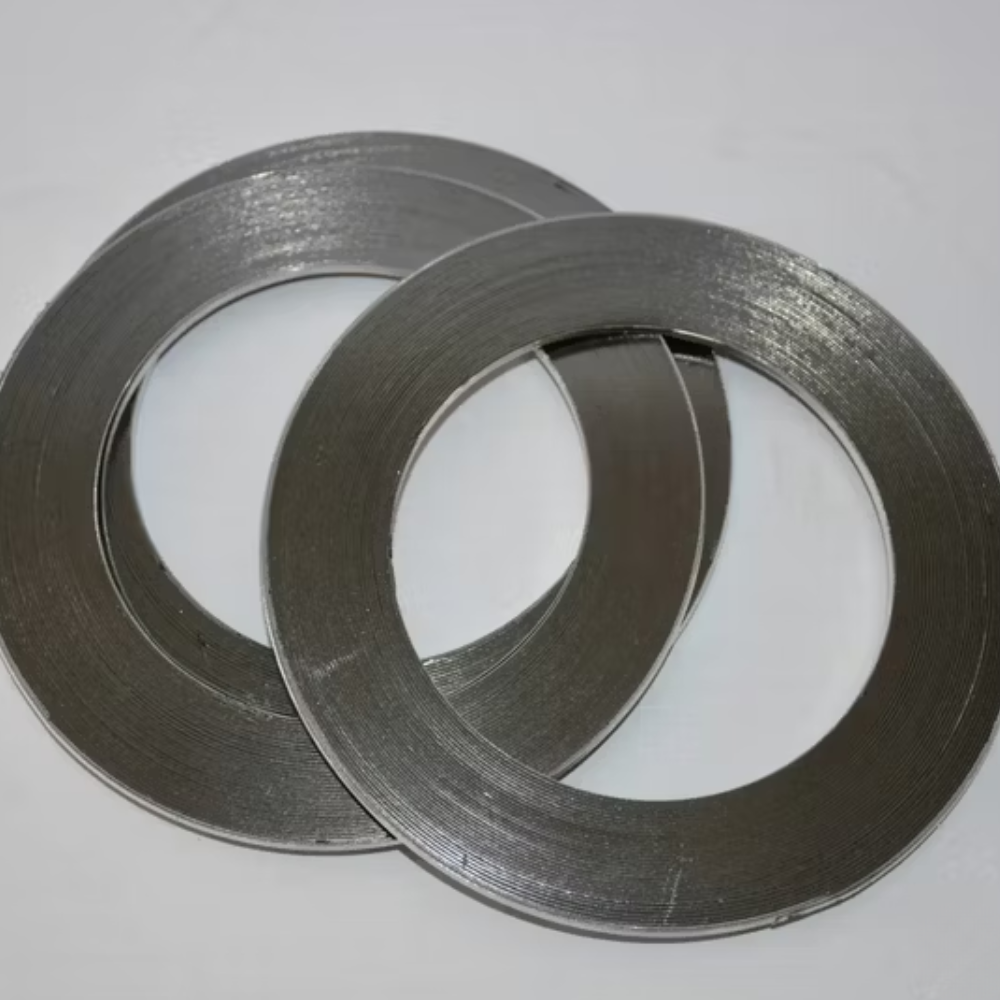

Carbon Steel Spiral Wound Gasket, Carbon Steel Graphite & PTFE Spiral Wound Gasket Manufacturer & Supplier in India
These gaskets are commonly used in oil & gas, petrochemical, refinery, chemical processing, power generation and industrial piping applications. They can be used with pipelines, pressure vessels, heat exchangers and other flange-connected equipment. Various ring arrangements can be provided to suit different flange designs. Their construction allows them to be manufactured for standard as well as application-specific requirements.
At Unifit Metal Alloys, we supply Carbon Steel Spiral Wound Gaskets in different diameters, thicknesses, filler combinations and ring configurations. Products can be manufactured according to customer drawings, flange dimensions and operating specifications. Inner rings, outer rings and combined ring arrangements are available as required.
Get the Best Quote for Carbon Steel Spiral Wound Gaskets. We Stock Carbon Steel Spiral Wound Gaskets in Various Diameters, Sizes, Thicknesses and Material Specifications. Contact Us Today for a Competitive Quote.
Specifications of Carbon Steel Spiral Wound Gasket
| Parameter | Specification |
|---|---|
| Material | Carbon Steel |
| Gasket Type | Carbon Steel Spiral Wound Gasket |
| Material Standards | ASTM A516, ASTM A105 and applicable material standards |
| Winding Material | Carbon Steel or Stainless Steel, as per application requirements |
| Filler Material | Flexible Graphite, PTFE, Ceramic or other suitable fillers |
| Inner & Outer Ring | Carbon Steel, Stainless Steel or other specified materials |
| Gasket Standard | ASME B16.20 |
| Flange Standard | ASME B16.5, ASME B16.47 and applicable international standards |
| Pressure Rating | 150 to 2500 Class, depending on size, construction and service conditions |
| Size Range | 1/2″ to 24″ and larger sizes available on request |
| Temperature Range | Suitable for high-temperature applications, depending on filler material and operating conditions |
| Corrosion Resistance | Good mechanical strength and suitable corrosion resistance when properly selected and protected |
| Applications | Oil & Gas, Petrochemical, Power Generation, Refineries, Chemical Processing, Heat Exchangers, Boilers and Pressure Vessels |
Carbon Steel Spiral Wound Gasket Chemical Composition
| Element | Carbon Steel |
|---|---|
| Carbon, C | 0.30 max |
| Manganese, Mn | 0.60 – 1.20 |
| Silicon, Si | 0.15 – 0.40 |
| Phosphorus, P | 0.035 max |
| Sulfur, S | 0.035 max |
| Chromium, Cr | 0.30 max |
| Nickel, Ni | 0.40 max |
| Copper, Cu | 0.40 max |
| Molybdenum, Mo | 0.12 max |
| Iron, Fe | Balance |
You need our support, to
have any projects?
Carbon Steel Spiral Wound Gasket Mechanical Properties
| Property | Carbon Steel |
|---|---|
| Tensile Strength | 485 MPa (70 ksi) min |
| Yield Strength | 250 MPa (36 ksi) min |
| Elongation | 21% min |
| Hardness | 187 HB max |
| Density | 7.85 g/cm³ |
| Modulus of Elasticity | 200 GPa |
| Poisson’s Ratio | 0.29 |
| Thermal Conductivity | Approximately 45 W/m·K |
Ready Stock of Carbon Steel Spiral Wound Gasket
Carbon Steel Spiral Wound Gasket Application Industries
