Nickel Plug Gaskets, Nickel Heat Exchanger Plug Gaskets & Industrial Sealing Components Supplier in Mumbai, India

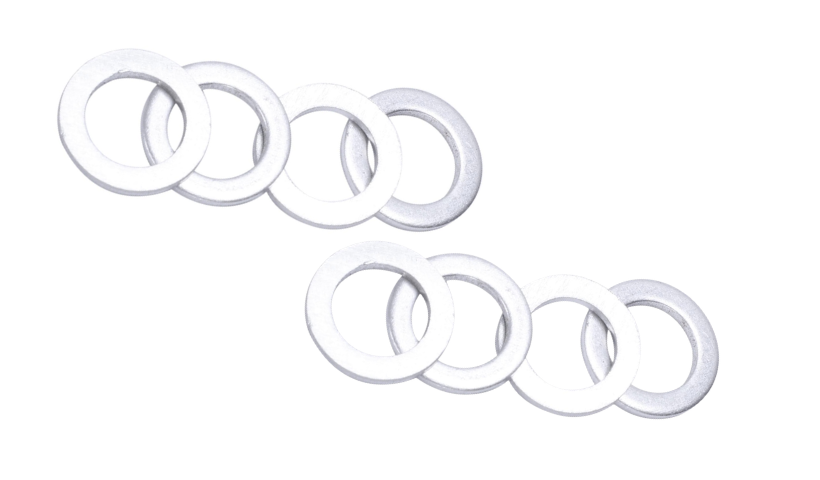

Unifit Metal Alloys is a manufacturer and supplier of Nickel Plug Gaskets in Mumbai, India, offering metallic sealing components for industrial equipment exposed to corrosive fluids, elevated temperatures and demanding operating conditions. Our gaskets are designed to provide dependable sealing where material compatibility and long-term service are important.
Nickel Plug Gaskets are manufactured from nickel-based materials selected for their excellent resistance to corrosion and chemical attack. Their stable mechanical properties and resistance to aggressive process media make them suitable for applications where ordinary gasket materials may not provide the required level of protection.
Nickel Plug Gasket, Nickel Heat Exchanger Plug Gasket and Nickel Industrial Sealing Gasket Manufacturer & Supplier in India
These metallic gaskets are installed between plugs and their corresponding seating surfaces to minimize leakage and maintain the integrity of heat-transfer and pressure-containing equipment. Their accurate construction enables proper seating and consistent sealing performance during service. At Unifit Metal Alloys, we supply Nickel Plug Gaskets in a range of diameters, thicknesses and dimensional configurations. Standard sizes are available for routine requirements, while custom-made gaskets can be produced according to customer drawings, plug dimensions and equipment specifications.
Our Nickel Plug Gaskets are suitable for heat exchangers, condensers, pressure vessels, chemical-processing equipment, reactors, refineries, petrochemical plants, marine systems, oil and gas facilities and power-generation applications. We can accommodate different material requirements, dimensions and surface finishes depending on the operating environment. Material documentation and dimensional inspection records can also be provided according to project requirements.
Get the Best Quote for Nickel Plug Gaskets. We Stock Nickel Plug Gaskets in Various Sizes, Dimensions and Specifications. Contact Us Today for a Competitive Quote.
Nickel Plug Gasket Specifications
| Property | Nickel 200 | Nickel 201 |
|---|---|---|
| Density | 8.90 g/cm³ | 8.90 g/cm³ |
| Melting Point | 1455–1458°C | 1455–1458°C |
| Max Service Temp | 593°C | 593°C |
| Hardness | 80 HRB | 75 HRB |
| Electrical Resistivity | 0.096 μΩ·m | 0.096 μΩ·m |
Nickel Plug Gasket Chemical Composition
| Element | Nickel 200 (%) | Nickel 201 (%) |
|---|---|---|
| Nickel (Ni) | 99.6 min | 99.0 min |
| Carbon (C) | 0.15 max | 0.03 max |
| Iron (Fe) | 0.35 max | 0.40 max |
| Manganese (Mn) | 0.50 max | 0.50 max |
| Silicon (Si) | 0.50 max | 0.50 max |
| Copper (Cu) | 0.30 max | 0.30 max |
| Sulfur (S) | 0.015 max | 0.015 max |
You need our support, to
have any projects?
Nickel Plug Gasket Mechanical Properties
| Property | Nickel 200 | Nickel 201 |
|---|---|---|
| Tensile Strength | 485 MPa | 485 MPa |
| Yield Strength | 140 MPa | 140 MPa |
| Elongation | 50% | 50% |
| Hardness | 80 HRB | 75 HRB |
Ready Stock of Nickel Plug Gasket
Nickel Plug Gasket Application Industries
