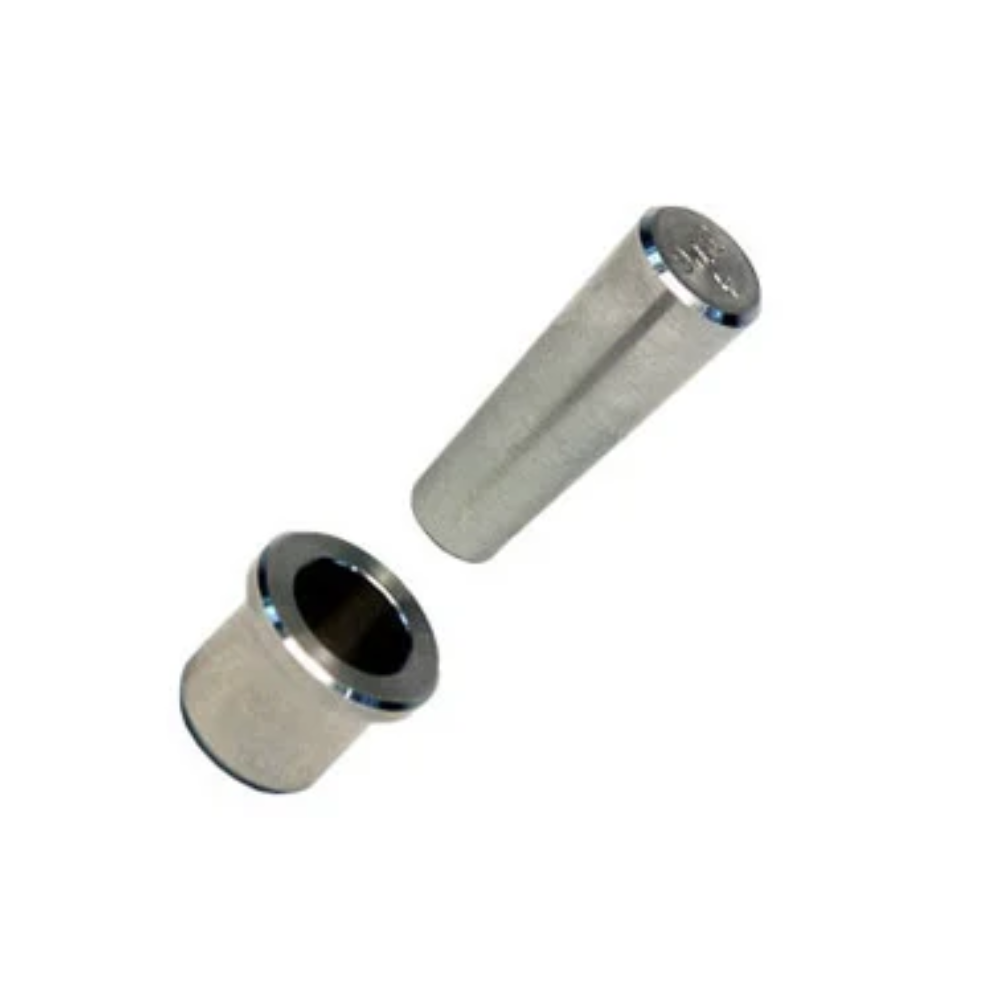

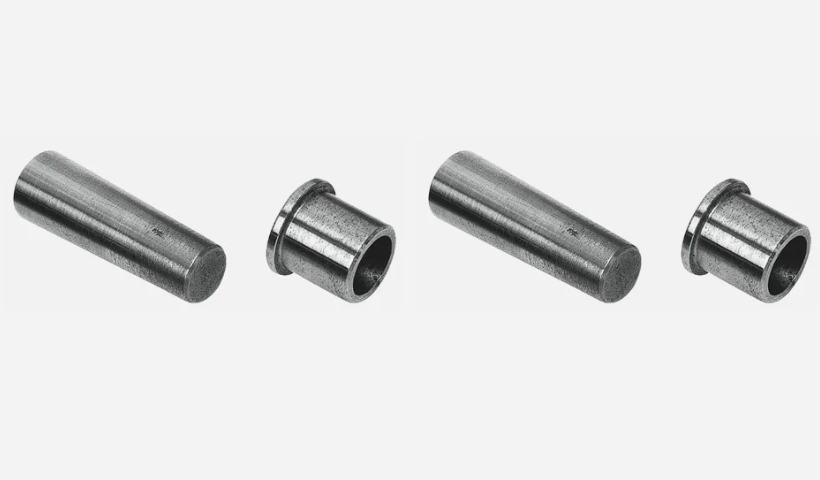

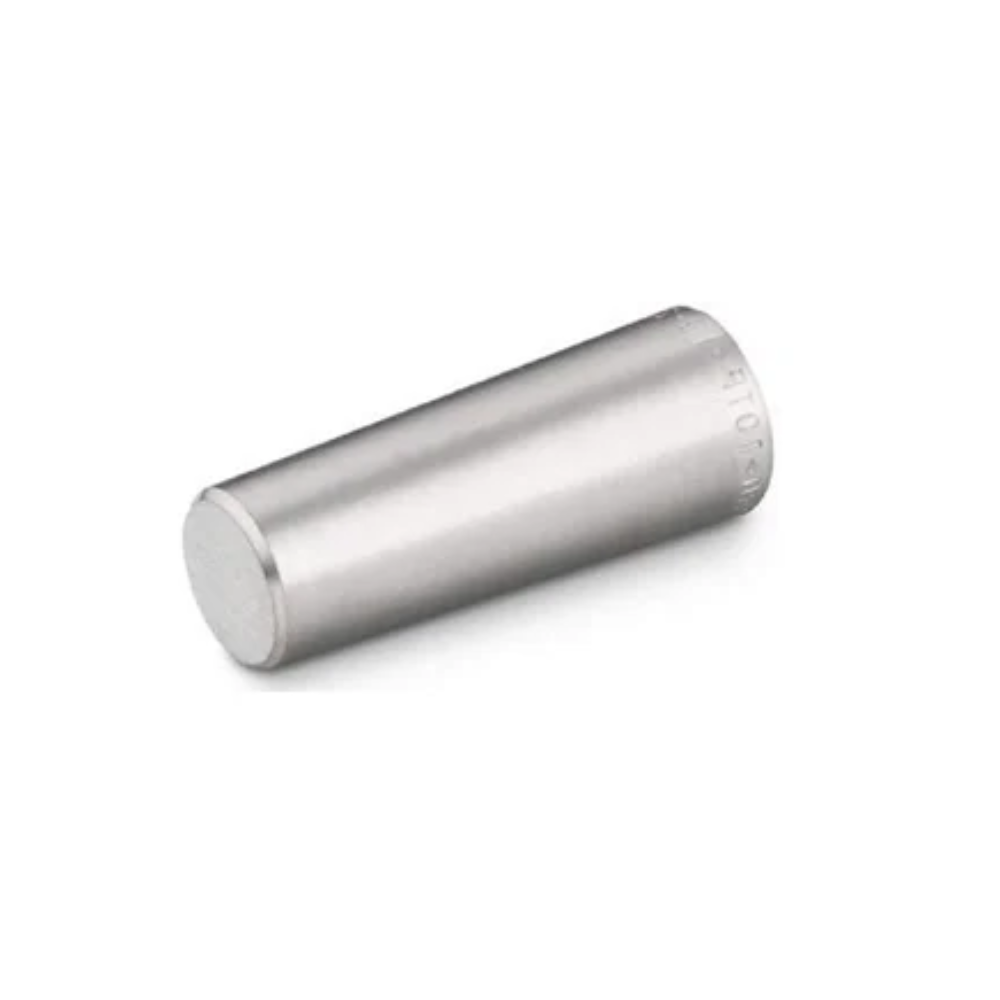

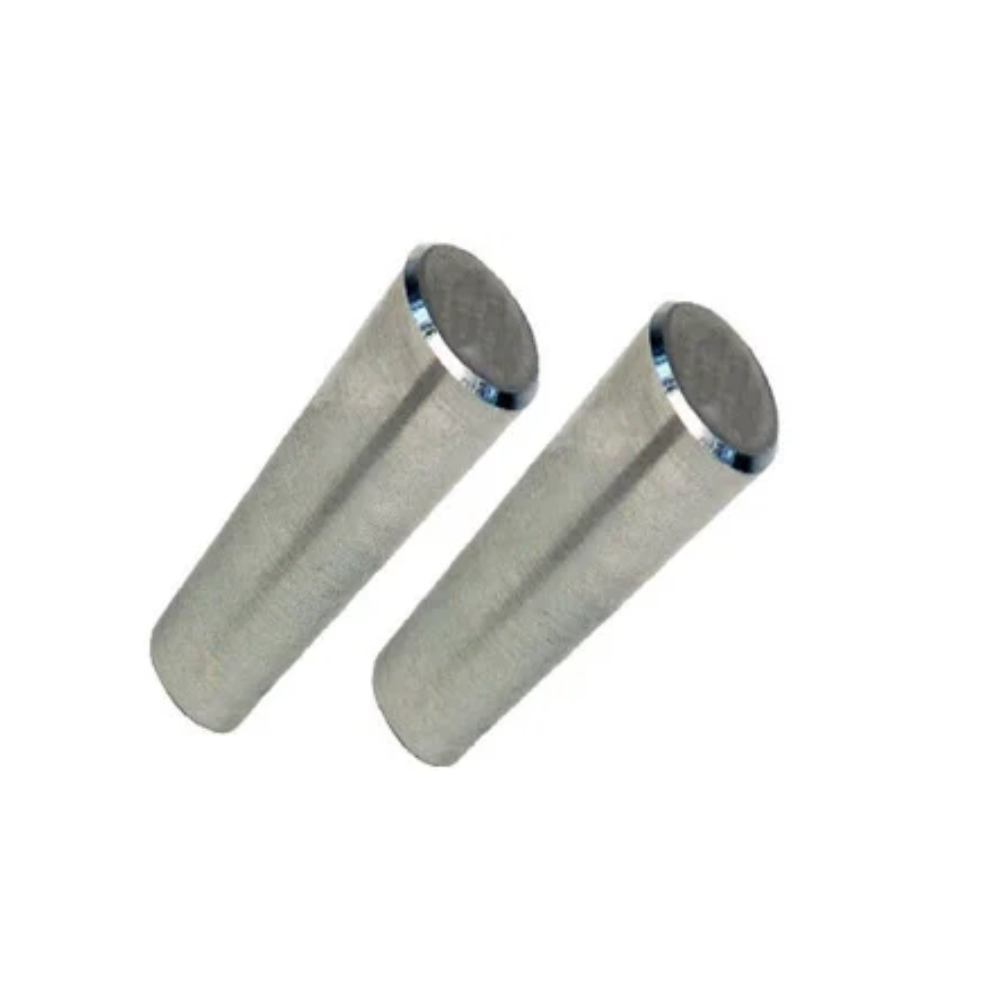

Inconel Tube Plugs, Inconel Tapered Tube Plugs & Industrial Tube Sealing Components Supplier in Mumbai, India
Unifit Metal Alloys is a manufacturer and supplier of Inconel Tube Plugs, offering reliable tube sealing solutions for demanding industrial equipment. Our Inconel Tube Plugs are suitable for applications where high-temperature performance, mechanical strength and resistance to aggressive corrosive environments are required. We supply these tube plugs in different sizes, designs and configurations according to customer requirements.
Inconel alloys are nickel-chromium-based materials known for their ability to maintain strength and corrosion resistance under challenging operating conditions. Depending on the selected grade, Inconel Tube Plugs can provide excellent resistance to oxidation, pitting, crevice corrosion and various chemical environments. These characteristics make them suitable for demanding heat-transfer and process equipment.
Inconel Tube Plugs, Inconel Tapered Tube Plugs & Industrial Tube Sealing Components Manufacturer and Supplier in Mumbai, India
Our range includes Inconel 600, Inconel 825, Inconel 800, Inconel 718 and Inconel 625 Tube Plugs. We also supply Inconel Tapered Tube Plugs, Threaded Tube Plugs, Pin Tube Plugs, Collar Tube Plugs, Expandable Tube Plugs, Boiler Tube Plugs, Condenser Tube Plugs and Heat Exchanger Tube Plugs. Inconel Tube Plugs are commonly used in heat exchangers, boilers, condensers, chemical processing plants, petrochemical equipment, power-generation systems, offshore installations, desalination equipment and other process industries. Their corrosion resistance and ability to withstand elevated temperatures make them suitable for tube isolation and sealing in severe service environments.
At Unifit Metal Alloys, tube plugs can be supplied in standard as well as customized dimensions. We can accommodate different tube diameters, lengths, configurations and thread requirements based on equipment specifications and customer drawings. Proper attention is given to material selection and dimensional accuracy to provide suitable products for each application.
Get the Best Quote for Inconel Tube Plugs. We Stock Inconel Tube Plugs in Various Grades, Sizes, Dimensions and Specifications. Contact Us Today for a Competitive Quote.
Inconel Tube Plugs Specifications
| Specifications | ||||||
|---|---|---|---|---|---|---|
| Diameter : | Min .375-9.525 , Max 2.5 in 63.5 mm | |||||
| Length : | Max 6 in 152.4 mm | |||||
| Maximum Pressure : | 150 PSI | |||||
Dimension For Inconel Tube Plugs
| Metal Tapered Tube Plugs – Tube Plug Sizing Chart | ||||
|---|---|---|---|---|
| Tube OD | Gauge | Dimension (Inches) | ||
| “A” | “B” | “L” | ||
| Small End | Large End | Length | ||
| 1/4″ | 18-24 | 0.141″ | 0.235″ | 1-1/4″ |
| 3/8″ | 12-24 | |||
| 3/8″ | 15-24 | 0.213″ | 0.371″ | 1-3/4″ |
| 1/2″ | 13-15 | |||
| 1/2″ | 15-24 | 0.337″ | 0.495″ | |
| 5/8″ | 12-14 | |||
| 5/8″ | 14-24 | 0.449″ | 0.625″ | |
| 3/4″ | 10-14 | |||
| 3/4″ | 14-24 | 0.564″ | 0.750″ | |
| 7/8″ | 10-13 | |||
| 1″ | 8-9 | |||
| 7/8″ | 15-24 | 0.706″ | 0.875″ | |
| 1″ | 10-15 | |||
| 1″ | 13-18 | 0.776″ | 0.934″ | |
| 1″ | 18-24 | 0.892″ | 1.050″ | |
| 1-1/8″ | 13-17 | |||
| 1-1/8″ | 15-24 | 0.949″ | 1.125″ | 2″ |
| 1-1/4″ | 10-14 | |||
| 1-1/4″ | 13-19 | 1.010″ | 1.186″ | |
| 1-1/4″ | 19-24 | 1.147″ | 1.323″ | |
| 1-1/2″ | 10-24 | 1.200″ | 1.495″ | 3″ |
| 1-1/2″ | 14-24 | 1.305″ | 1.600″ | |
| 1-3/4″ | 6-13 | |||
| 1-3/4″ | 14-22 | 1.575″ | 1.870″ | |
| 2″ | 6-13 | |||
| 2″ | 12-22 | 1.700″ | 1.995″ | |
| 2-1/4″ | 6-13 | 1.805″ | 2.100″ | |
| 2-1/2″ | 5-18 | 2.000″ | 2.375″ | |
| 2-3/4″ | 4-10 | 2.232″ | 2.500″ | |
| 3″ | 5-12 | 2.524″ | 2.834″ | 4″ |
| 3″ | 10-23 | 2.625″ | 3.000″ | |
| 3-1/4″ | 7-14 | 2.875″ | 3.125″ | |
| 3-1/4″ | 13-23 | 3.010″ | 3.250″ | |
| 3-1/2″ | 7-12 | 3.125″ | 3.375″ | |
| 3-1/2″ | 13-23 | 3.260″ | 3.500″ | |
| 3-3/4″ | 5-12 | 3.274″ | 3.567″ | |
| 3-3/4″ | 13-23 | 3.510″ | 3.750″ | |
| 4″ | 5-12 | 3.524″ | 3.817″ | |
| 4″ | 13-23 | 3.782″ | 4.000″ | |
You need our support, to
have any projects?
Inconel Tube Plugs Equivalent Grade
| Grade | Inconel 600 | Inconel 601 | Inconel 625 | Inconel 718 |
|---|---|---|---|---|
| UNS | N06600 | N06601 | N06625 | N07718 |
| Werkstoff No. | 2.4816 | 2.4851 | 2.4856 | 2.4668 |
| ASTM | ASTM B166 | ASTM B166 | ASTM B446 | ASTM B637 |
| EN | NiCr15Fe | NiCr23Fe | NiCr22Mo9Nb | NiCr19Fe19Nb5Mo3 |
Ready Stock of Inconel Tube Plugs
