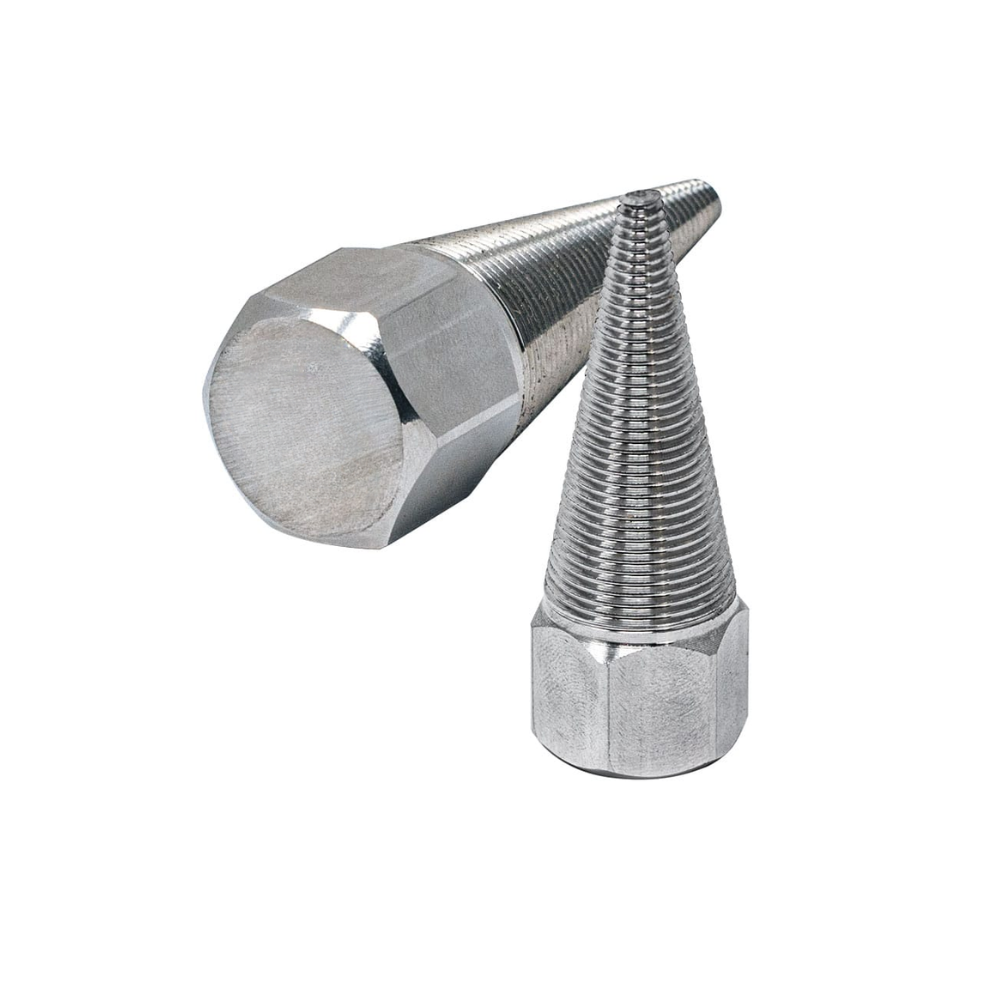

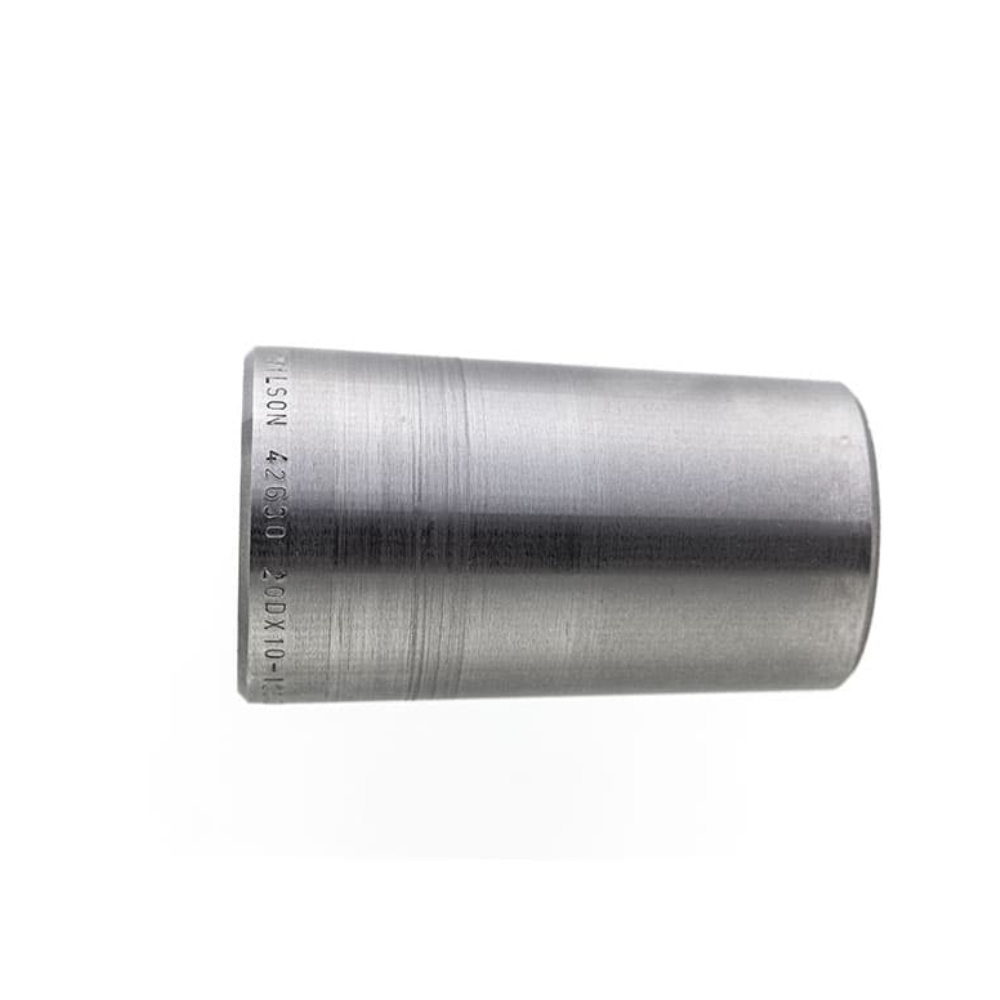

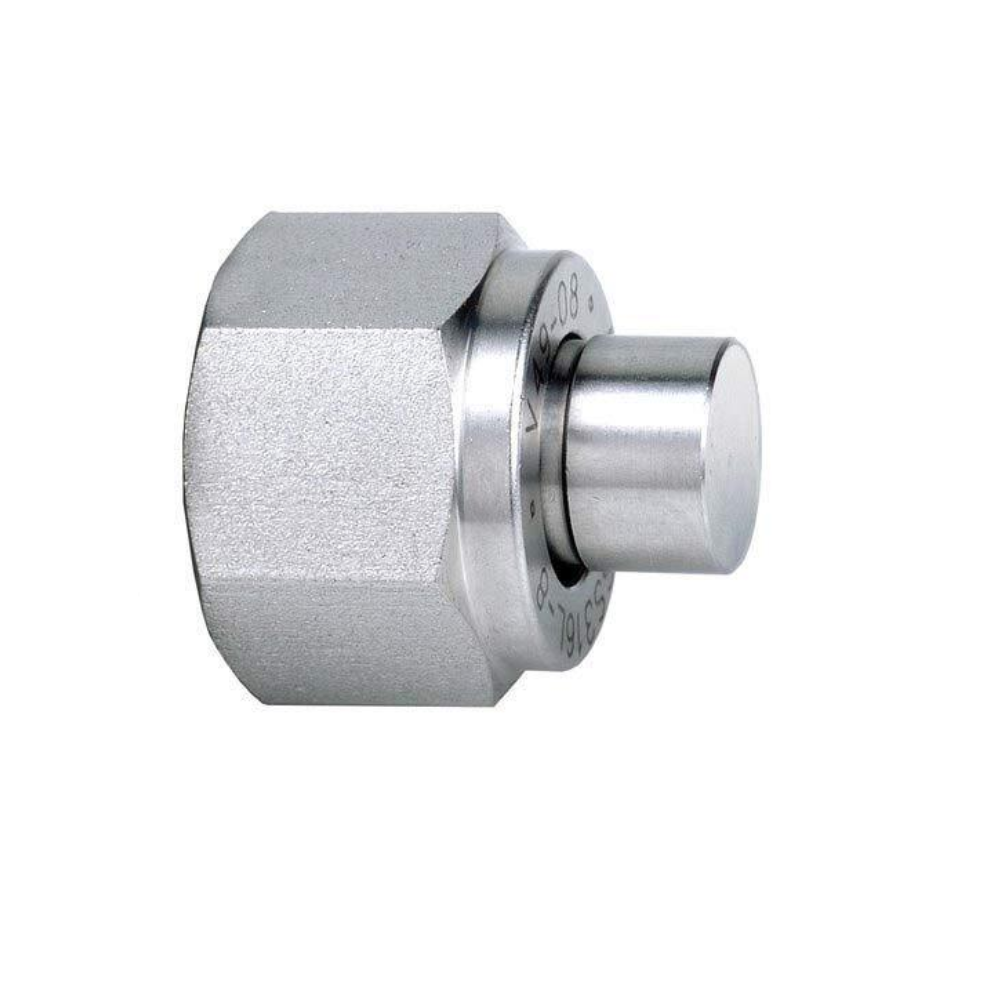

Tube Plugs / Tapered Tube Plugs, Tube Plug Fittings & Industrial Tube Sealing Components Supplier in Mumbai, India
Unifit Metal Alloys is a manufacturer and supplier of Tube Plugs, providing reliable sealing components for heat exchangers, boilers, condensers and various industrial equipment. Our Tube Plugs are manufactured and supplied in different materials, sizes and configurations to suit the requirements of different applications.
Tube Plugs are used to close, isolate or seal individual tubes during maintenance, testing and repair operations. They provide a practical solution for preventing leakage and isolating damaged or unused tubes without requiring complete replacement of the equipment. At Unifit Metal Alloys, we focus on supplying Tube Plugs with accurate dimensions and dependable performance.
Tube Plugs / Tapered Tube Plugs, Tube Plug Fittings & Industrial Tube Sealing Components Manufacturer and Supplier in Mumbai, India
We manufacture and supply Tube Plugs using suitable grades of stainless steel, alloy steel, nickel alloys and other materials according to the application requirements. Products can be supplied in different sizes, shapes and specifications based on customer drawings, equipment requirements and applicable standards.
Our Tube Plugs are suitable for applications involving heat exchangers, boilers, condensers, pressure vessels, chemical processing equipment, petrochemical plants, power-generation systems and oil & gas installations. Proper material selection allows the plugs to perform reliably in applications exposed to pressure, temperature and corrosive operating conditions. Unifit Metal Alloys also offers customized Tube Plugs to meet specific dimensional and material requirements. We maintain attention to product quality, dimensional accuracy and proper material selection to provide suitable sealing solutions for industrial maintenance and fabrication requirements.
Get the Best Quote for Tube Plugs / Tapered Tube Plugs. We Stock Tube Plugs in Various Materials, Sizes, Dimensions and Specifications. Contact Us Today for a Competitive Quote.
Tube Plugs Specifications
| Tube Plugs | Specifications |
|---|---|
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Form | Tube Plugs / Plugs |
| Type | Screwed-Threaded NPT, BSP, BSPT Fittings. |
| Size | 1/4″ NB TO 4″ NB |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799. |
| Grades | |
| Stainless Steel | ASTM / ASME 201, 202, 301, 304, 304L, 310, 310S, 316L, 316TI, 317, 317L, 321, 347, 409, 409M, 409L, 410, 410S, 420, 430, 431, 441, 444, 446, 17.4PH, 904L |
| Super Duplex Steel | UNS S32750, UNS S32760 |
| Duplex Steel | UNS S31803, UNS S32205 |
| Carbon Steel | ASTM / ASME A105. ASTM / ASME A 350 LF |
| Alloys Steel | ASTM / ASME A 691 GRP1 CR , 1 1/4 CR , 2 1/4 CR , 5 CR , 9CR , 91. |
| Nickel Alloys | Nickel Alloys 200, Nickel Alloys 201 |
| Titanium | Grade 1, Grade 4, Grade 5(Ti 6Al-4V), Grade 6(Ti 5Al-2.5Sn), Grade 7, Grade 11, Grade 12, 8Ai-1Mo-1V, Grade 9(3Al-2.5V), 6Al-6V-25n, 6Al-2Sn-4Zr-2Mo, 6Al-7Nb, Grade 23(Ti 6AL-4V ELI), Grade 5 ELI |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 , Inconel 690, Inconel 602, Inconel 617, Inconel 925, Inconel A-289, Inconel AL-6XN, AL-904L |
| Hastelloy | Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000, Hastelloy C-4, Hastelloy X, Hastelloy B, Hastelloy N, Hastelloy G |
Tube Plugs Dimension Chart
| Tube Plugs Dimension Chart | ||||||
|---|---|---|---|---|---|---|
| A Tube Outside Diameter in. (mm) | B1 Tube Wall Gauge | B2 Tube Wall Thickness in. (mm) | Basic Ordering Number | Dimensions, in. (mm) | ||
| C Length | D Diameter | E Diameter | ||||
| 1/2 (12.7) | 11-14 | 0.083 to 0.120 (2.1 to 3.0) | -8TP-11-14 | 1.55 (39.4) | 0.280 (7.1) | 0.366 (9.3) |
| 15-20 | 0.035 to 0.072 (0.9 to 1.8) | -8TP-15-20 | 1.56 (39.6) | 0.371 (9.4) | 0.457 (11.6) | |
| 5/8 (15.9) | 11-14 | 0.083 to 0.120 (2.1 to 3.0) | -10TP-11-14 | 1.57 (39.9) | 0.405 (10.3) | 0.491 (12.5) |
| 15-20 | 0.035 to 0.072 (0.9 to 1.8) | -10TP-15-20 | 1.58 (40.1) | 0.496 (12.6) | 0.582 (14.8) | |
| 3/4 (19.1) | 11-14 | 0.083 to 0.120 (2.1 to 3.0) | -12TP-11-14 | 1.58 (40.1) | 0.530 (13.5) | 0.616 (15.6) |
| 12-17 | 0.058 to 0.109 (1.5 to 2.8) | -12TP-12-17 | 2.09 (53.1) | 0.546 (13.9) | 0.663 (16.8) | |
| 15-20 | 0.035 to 0.072 (0.9 to 1.8) | -12TP-15-20 | 1.59 (40.4) | 0.621 (15.8) | 0.707 (18.0) | |
| 7/8 (22.2) | 11-14 | 0.083 to 0.120 (2.1 to 3.0) | -14TP-11-14 | 1.60 (40.6) | 0.650 (16.5) | 0.736 (18.7) |
| 15-20 | 0.035 to 0.072 (0.9 to 1.8) | -14TP-15-20 | 1.62 (41.1) | 0.746 (18.9) | 0.832 (21.1) | |
| 1 (25.4) | 11-14 | 0.083 to 0.120 (2.1 to 3.0) | -16TP-11-14 | 1.62 (41.1) | 0.780 (19.8) | 0.866 (22.0) |
| 12-17 | 0.058 to 0.109 (1.5 to 2.8) | -16TP-12-17 | 2.11 (53.6) | 0.793 (20.1) | 0.910 (23.1) | |
| 15-20 | 0.035 to 0.072 (0.9 to 1.8) | -16TP-15-20 | 1.63 (41.4) | 0.871 (22.1) | 0.957 (24.3) | |
You need our support, to
have any projects?
Tapered Tube Plugs Sizing Chart
| Sizing Chart | |||||
|---|---|---|---|---|---|
| Product Ordering Code | Tube OD | Gauge | Dimension (Inches) | ||
| “A” | “B” | “L” | |||
| Small End | Large End | Length | |||
| FAVHEP-1-X | 1/4″ | 18-24 | 0.141″ | 0.235″ | 1-1/4″ |
| 3/8″ | 12-24 | ||||
| FAVHEP-2-X | 3/8″ | 15-24 | 0.213″ | 0.371″ | 1-3/4″ |
| 1/2″ | 13-15 | ||||
| FAVHEP-3-X | 1/2″ | 15-24 | 0.337″ | 0.495″ | |
| 5/8″ | 12-14 | ||||
| FAVHEP-4-X | 5/8″ | 14-24 | 0.449″ | 0.625″ | |
| 3/4″ | 10-14 | ||||
| FAVHEP-5-X | 3/4″ | 14-24 | 0.564″ | 0.750″ | |
| 7/8″ | 10-13 | ||||
| 1″ | 8-9 | ||||
| FAVHEP-6-X | 7/8″ | 15-24 | 0.706″ | 0.875″ | |
| 1″ | 10-15 | ||||
| FAVHEP-7-X | 1″ | 13-18 | 0.776″ | 0.934″ | |
| FAVHEP-8-X | 1″ | 18-24 | 0.892″ | 1.050″ | |
| 1-1/8″ | 13-17 | ||||
| FAVHEP-9-X | 1-1/8″ | 15-24 | 0.949″ | 1.125″ | 2″ |
| 1-1/4″ | 10-14 | ||||
| FAVHEP-10-X | 1-1/4″ | 13-19 | 1.010″ | 1.186″ | |
| FAVHEP-11-X | 1-1/4″ | 19-24 | 1.147″ | 1.323″ | |
| FAVHEP-12-X | 1-1/2″ | 10-24 | 1.200″ | 1.495″ | 3″ |
| FAVHEP-13-X | 1-1/2″ | 14-24 | 1.305″ | 1.600″ | |
| 1-3/4″ | 6-13 | ||||
| FAVHEP-14-X | 1-3/4″ | 14-22 | 1.575″ | 1.870″ | |
| 2″ | 6-13 | ||||
| FAVHEP-15-X | 2″ | 12-22 | 1.700″ | 1.995″ | |
| FAVHEP-16-X | 2-1/4″ | 6-13 | 1.805″ | 2.100″ | |
| FAVHEP-17-X | 2-1/2″ | 5-18 | 2.000″ | 2.375″ | |
| FAVHEP-18-X | 2-3/4″ | 4-10 | 2.232″ | 2.500″ | |
| FAVHEP-19-X | 3″ | 5-12 | 2.524″ | 2.834″ | 4″ |
| FAVHEP-20-X | 3″ | 10-23 | 2.625″ | 3.000″ | |
| FAVHEP-21-X | 3-1/4″ | 7-14 | 2.875″ | 3.125″ | |
| FAVHEP-22-X | 3-1/4″ | 13-23 | 3.010″ | 3.250″ | |
| FAVHEP-23-X | 3-1/2″ | 7-12 | 3.125″ | 3.375″ | |
| FAVHEP-24-X | 3-1/2″ | 13-23 | 3.260″ | 3.500″ | |
| FAVHEP-25-X | 3-3/4″ | 5-12 | 3.274″ | 3.567″ | |
| FAVHEP-26-X | 3-3/4″ | 13-23 | 3.510″ | 3.750″ | |
| FAVHEP-27-X | 4″ | 5-12 | 3.524″ | 3.817″ | |
| FAVHEP-28-X | 4″ | 13-23 | 3.782″ | 4.000″ | |
Ready Stock of Tube Plugs / Tapered Tube Plugs
Tube Plugs / Tapered Tube Plugs Application Industries
