Spiral Wound Gasket

Spiral Wound Gaskets, ASME B16.20 Spiral Wound Gaskets Supplier in Mumbai, India

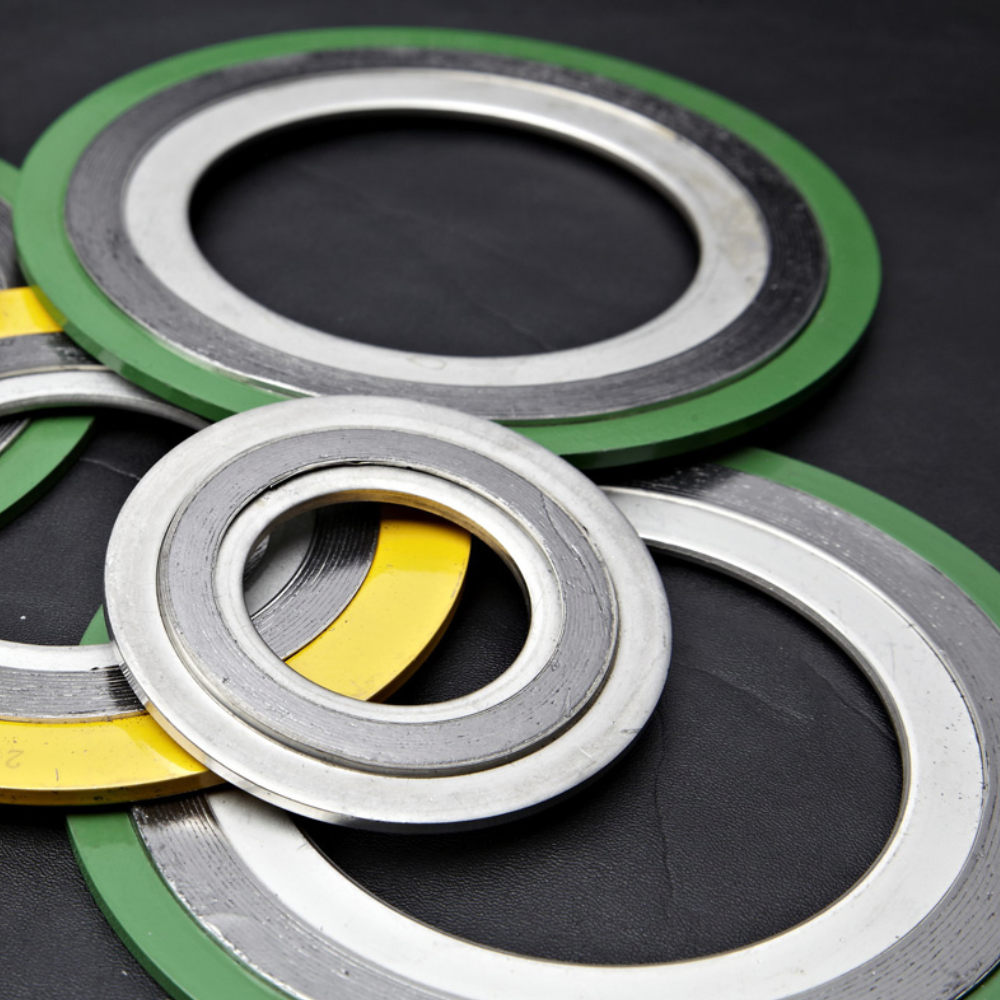

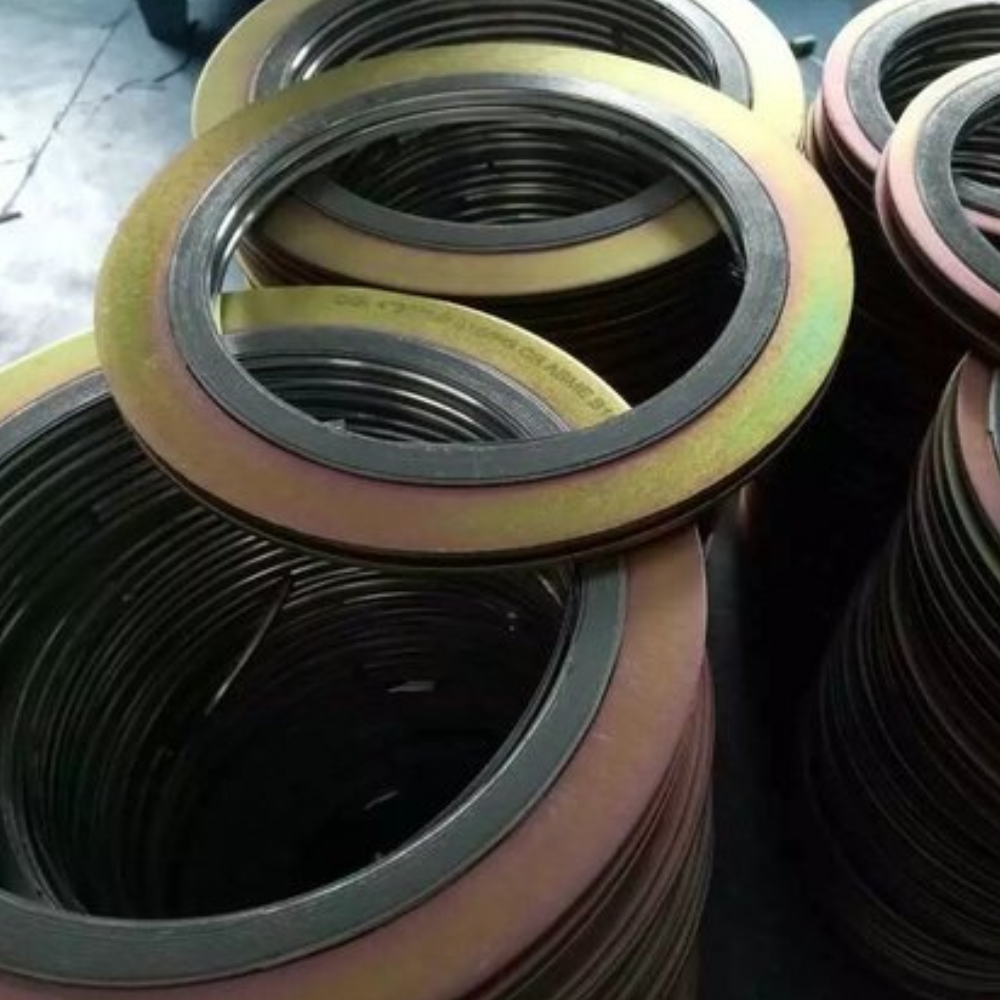

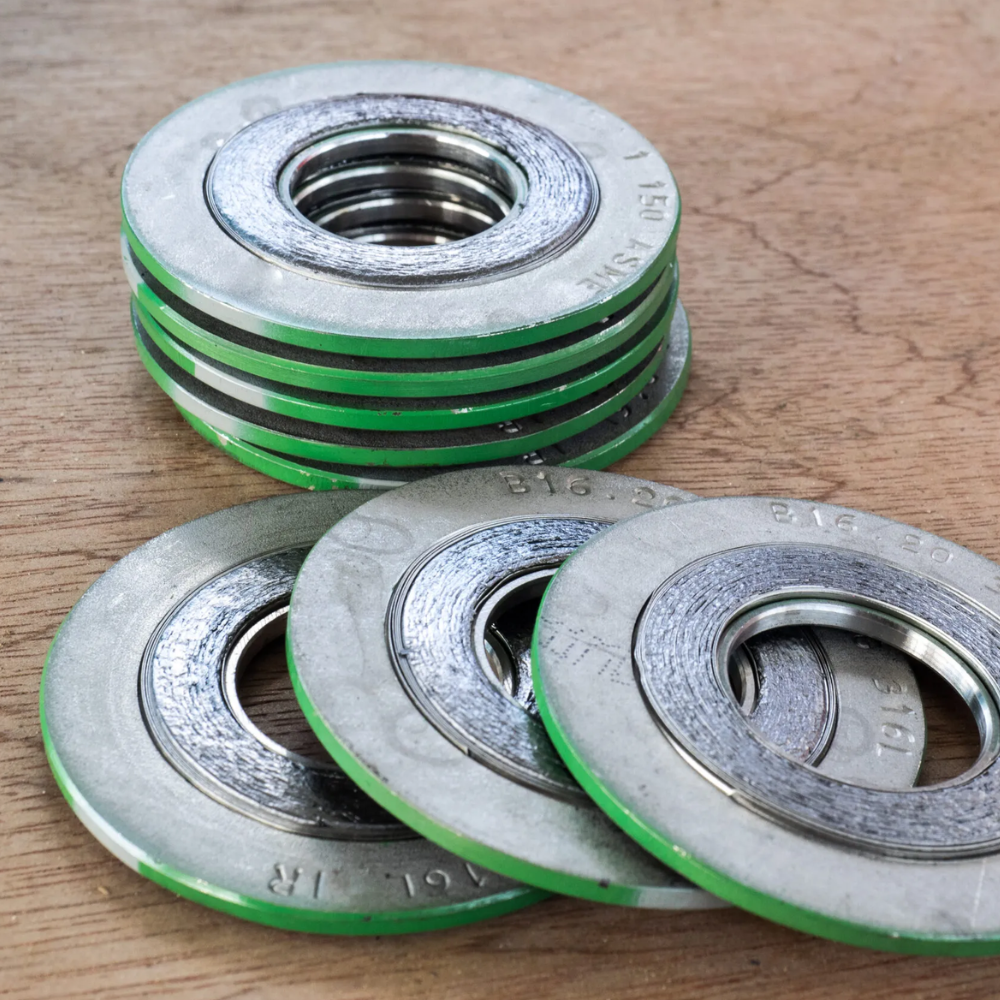

Unifit Metal Alloys is a manufacturer, supplier and exporter of Spiral Wound Gaskets in Mumbai, India, supplying sealing solutions for industrial piping, pressure equipment and process systems. Our Spiral Wound Gaskets are manufactured using a controlled winding process in which a thin metallic strip and suitable filler material are wound together around a winding mandrel to form a secure and resilient sealing element.

The construction of a Spiral Wound Gasket allows the metal winding and filler material to work together under compression, helping the gasket maintain sealing performance across varying pressure and temperature conditions. The dimensions, winding density and material combination can be selected according to the service requirements and flange arrangement.

Spiral Wound Gasket, Spiral Wound Gasket Stock and Industrial Spiral Wound Gasket Manufacturer & Supplier in India

We offer Spiral Wound Gaskets in different sizes, winding materials, filler types and configurations to suit standard as well as customized applications. Gaskets can be supplied according to customer specifications, drawings and applicable dimensional requirements.

These gaskets are commonly used in oil and gas, petrochemical, chemical processing, power generation, refineries, marine systems and industrial piping, particularly in applications where reliable sealing is required under elevated pressure and temperature.

Get the Best Quote for Spiral Wound Gaskets. We Stock Spiral Wound Gaskets in Various Diameters, Sizes, Thicknesses and Material Specifications. Contact Us Today for a Competitive Quote.

Specifications of Spiral Wound Gasket

Specifications
Spiral Wound Gaskets thickness 2.5, 3.2, 4.5, 6.4, 7.2
API Spiral Wound Gasket Pressure Rating Upto 400bar
Flexitallic Spiral Wound Gasket Temperature -250 to +1000 degree C

Spiral wound Gasket Dimensions Schedule

NPS Inner Ring Sealing Element Outer Ring
Inside Dia (d1) Inside Dia (d2) Outside Dia (d3) Outside Dia (d4)
½ 14.2 19.1 31.8 47.8
¾ 20.6 25.4 39.6 57.2
1 26.9 31.8 47.8 66.8
1¼ 38.1 47.8 60.5 76.2
1½ 44.5 54.1 69.9 85.9
2 55.6 69.9 85.9 104.9
2½ 66.5 82.6 98.6 124.0
3 81.0 101.6 120.7 136.7
4 106.4 127.0 149.4 174.8
5 131.8 155.7 177.8 196.9
6 157.2 182.6 209.6 222.3
8 215.9 233.4 263.7 279.4
10 268.2 287.3 317.5 339.9
12 317.5 339.9 374.7 409.7
14 349.3 371.6 406.4 450.9
16 400.1 422.4 463.6 514.4
18 449.3 474.7 527.1 549.4
20 500.1 525.5 577.9 606.6
24 603.3 628.7 685.8 717.6

You need our support, to
have any projects?

Get Free Quotes
Contact Us

Spiral Wound Gasket Material Configurations

Winding / Inner / Outer Ring Material Combinations Maximum Temperature  ASME B16.20 Colour Coding
Carbon Steel  500⁰C  Silver
304 Stainless Steel  550⁰C  Yellow
316/L Stainless Steel  550⁰C  Green
316 Ti Stainless Steel  650⁰C  Light Blue
321 Stainless Steel  650⁰C  Turquoise
347 Stainless Steel  650⁰C  Blue
Duplex  800⁰C  N/A
Nickel 200  600⁰C  Red
Monel 400  600⁰C  Orange
Titanium  350⁰C  Purple
Hastelloy B-2  450⁰C  Brown
Hastelloy C-276  450⁰C  Beige
Inconel 600  950⁰C  Gold
Inconel 625  450⁰C  Gold
Inconel X-750  1000⁰C  Light Grey
Incoloy 825  450⁰C  White

Ready Stock of Spiral Wound Gasket

Spiral Wound Gaskets with Graphite Filler
Spiral Wound Gaskets with PTFE Filler
Spiral Wound Gaskets with Ceramic Filler
Spiral Wound Gaskets with Mica Filler
Spiral Wound Gaskets with Inner Ring
Spiral Wound Gaskets with Outer Ring
Spiral Wound Gaskets with SS 304 Winding
Spiral Wound Gaskets with SS 316 Winding
Spiral Wound Gaskets with SS 316L Winding
Spiral Wound Gaskets with Mica Filler

Spiral Wound Gasket Application Industries

Refineries
90%
Oil and Gas Industry
96%
Power Generation
80%
Pharmaceutical Equipment
85%
Pulp & Paper Industry
88%
