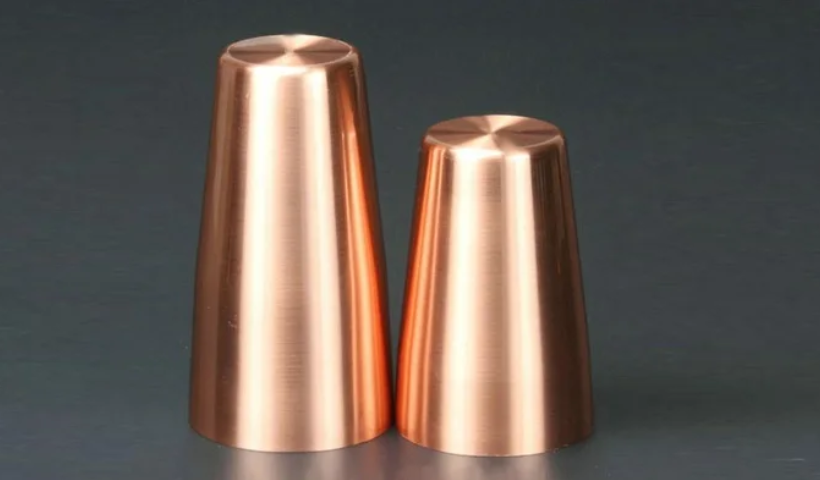

Copper Tube Plug

Copper Tube Plugs, Copper Tapered Tube Plugs & Industrial Tube Sealing Components Supplier in Mumbai, India

Unifit Metal Alloys is a manufacturer and supplier of Copper Tube Plugs, providing reliable tube sealing components for heat-transfer equipment and industrial systems. Copper is widely preferred for tube applications because of its good thermal conductivity, corrosion resistance and ease of fabrication. These properties make copper tube plugs suitable for equipment where efficient heat transfer and dependable tube closure are required.

Our Copper Tube Plugs are available in different designs, dimensions and configurations to suit various tube sealing requirements. We can supply Copper Tapered Tube Plugs, Threaded Tube Plugs, Pin Tube Plugs, Collar Tube Plugs, Expandable Tube Plugs, One-Piece Tube Plugs, Boiler Tube Plugs, Condenser Tube Plugs and Heat Exchanger Tube Plugs according to application needs.

Copper Tube Plugs, Copper Tapered Tube Plugs & Industrial Tube Sealing Components Manufacturer and Supplier in Mumbai, India

Copper Tube Plugs are commonly used in heat exchangers, condensers, boilers, refrigeration equipment, HVAC systems, power plants, chemical processing equipment and industrial cooling systems. Their excellent thermal conductivity makes copper particularly useful in heat-transfer applications, while its workable nature allows tube plugs to be produced in different shapes and sizes.

At Unifit Metal Alloys, we offer Copper Tube Plugs in standard and customized dimensions. The products can be manufactured or supplied according to tube diameter, wall thickness, plug design and customer specifications. Customized configurations can also be considered for replacement and maintenance requirements. Our Copper Tube Plugs are suitable for tube isolation, temporary closure, maintenance work and permanent sealing applications. We focus on providing properly dimensioned products that can be selected according to the operating conditions and equipment requirements of each application.

Get the Best Quote for Copper Tube Plugs. We Stock Copper Tube Plugs in Various Sizes, Dimensions and Specifications. Contact Us Today for a Competitive Quote.

Material Specification Chart Of Copper Tube Plugs

Specifications
Tube Size 0.375″ to 3.000″ (9.5 – 76.2mm) OD
Maximum Pressure 150 PSI
Length Max 6 in 152.4 mm

Copper Two-Piece Metal Tube Plug Sizes

Metal Tapered Two Piece Plugs – Tube Plug Sizing Chart
Tube OD Tube ID Range Pin Size Ring Size
3/8″ 0.283 – 0.377 TP – 1 TPR-0375
1/2″ 0.283 – 0.377 TP – 1 TPR-0500-1
0.384 – 0.503 TP – 2 TPR-0500-2
5/8″ 0.384 – 0.503 TP – 2 TPR-0625-2
0.480 – 0.635 TP – 3 TPR-0625-3
3/4″ 0.480 – 0.635 TP – 3 TPR-0750-3
0.616 – 0.759 TP – 4 TPR-0750-4
1″ 0.616 – 0.759 TP – 4 TPR-1000-4
0.730 – 0.840 TP – 5 TPR-1000-5
0.830 – 1.008 TP – 6 TPR-1000-6
1 1/8″ 0.730 – 0.840 TP – 5 TPR-1125-5
0.830 – 1.008 TP – 6 TPR-1125-6
0.930 – 1.130 TP – 7 TPR-1125-7
1 1/4″ 0.930 – 1.130 TP – 7 TPR-1250-7
0.992 – 1.261 TP – 8 TPR-1250-8
1 1/2″ 1.180 – 1.240 TP – 9 TPR-1500-9
1.242 – 1.342 TP – 10 TPR-1500-10
1.344 – 1.495 TP – 11 TPR-1500-11
1.380 – 1.510 TP – 12 TPR-1500-12
2″ 1.680 – 1.856 TP – 13 TPR-2000-13
1.742 – 2.020 TP – 14 TPR-2000-14

You need our support, to
have any projects?

Get Free Quotes
Contact Us

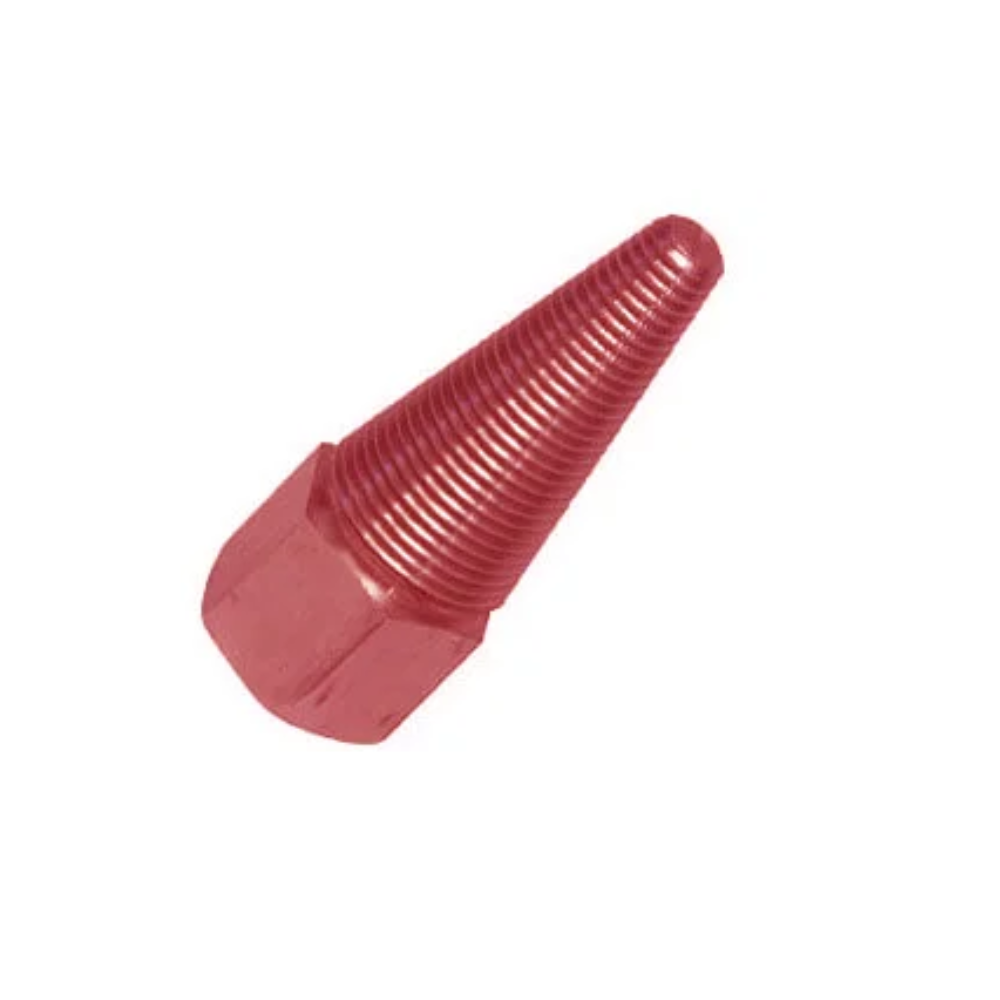

Copper Threaded Tapered Plug Sizes

Threaded Tapered Plugs
Max Hole Size Part No. Width Hex Size
0.350″ TTP-375 0.365″ 3/8″
0.450″ TTP-500 0.480″ 1/2″
0.580″ TTP-625 0.615″ 5/8″
0.710″ TTP-750 0.730″ 3/4″
0.835″ TTP-875 0.855″ 7/8″
0.950″ TTP-1000 0.975″ 1″
1.150″ TTP-1125 1.100″ 1 1/8″
1.200″ TTP-1250 1.220″ 1 1/4″
1.320″ TTP-1375 1.345″ 1 3/8″
1.450″ TTP-1500 1.470″ 1 1/2″

Ready Stock of Copper Tube Plugs

Copper Tube Plugs
Copper Tapered Tube Plugs
Copper Pin Tube Plugs
Copper Threaded Tube Plugs
Copper Collar Tube Plugs
Copper Expandable Tube Plugs
Copper One-Piece Tube Plugs
Copper Boiler Tube Plugs
Copper Condenser Tube Plugs
Copper Precision Tube Plugs
Copper Tube Closure Plugs
Copper Heat Transfer Tube Plugs

Copper Tube Plugs Application Industries

Refineries
90%
Oil and Gas Industry
96%
Power Generation
80%
Pharmaceutical Equipment
85%
Pulp & Paper Industry
88%
