Duplex Plug Gaskets, Duplex Heat Exchanger Plug Gaskets & Industrial Sealing Components Supplier in Mumbai, India

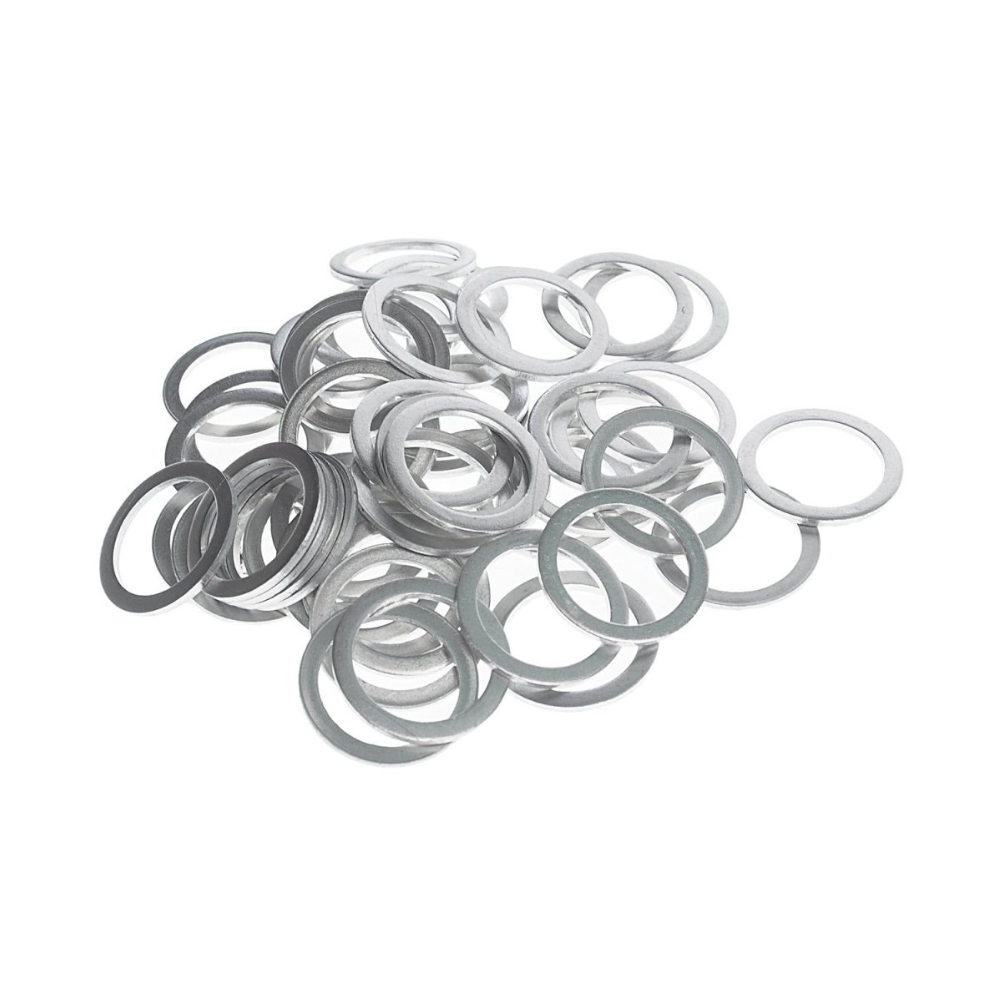

Unifit Metal Alloys is a manufacturer and supplier of Duplex Plug Gaskets in Mumbai, India, offering precision-made metallic sealing components for industrial equipment exposed to pressure, corrosive fluids and demanding operating conditions. Our gaskets are designed for applications where strong sealing performance and resistance to aggressive environments are required.
Duplex Plug Gaskets are manufactured from duplex alloy materials that combine high mechanical strength with excellent resistance to pitting, crevice corrosion and stress corrosion cracking. This makes them suitable for sealing applications where conventional materials may not provide adequate service life.

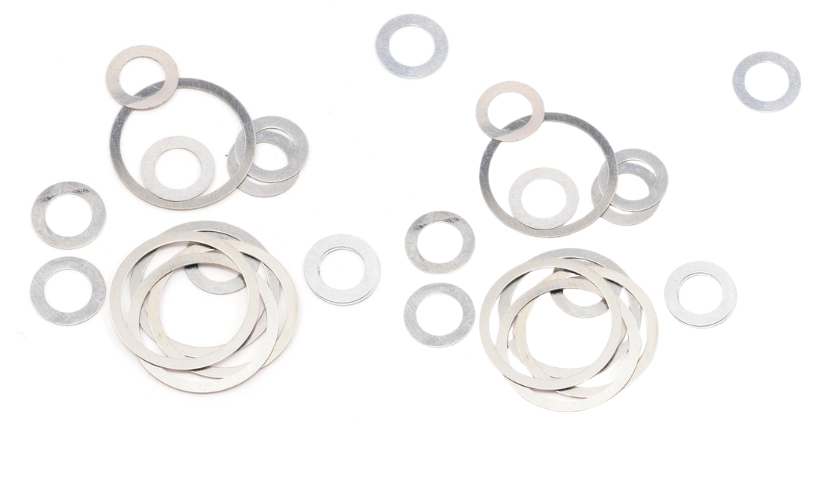

Duplex Plug Gasket, Duplex Heat Exchanger Plug Gasket and Duplex Industrial Sealing Gasket Manufacturer & Supplier in India
The gaskets are fitted between plugs and their mating surfaces to help prevent leakage and maintain the sealing integrity of industrial equipment. Their durable metallic construction provides reliable performance under changing pressure, temperature and process conditions.
At Unifit Metal Alloys, we supply Duplex Plug Gaskets in various sizes, thicknesses and configurations. Standard dimensions are available for maintenance and replacement requirements, while customized gaskets can be produced according to customer drawings, plug dimensions and equipment specifications. Our Duplex Plug Gaskets are suitable for heat exchangers, condensers, pressure vessels, chemical-processing equipment, offshore systems, marine applications, refineries, petrochemical plants, oil and gas facilities and power-generation equipment.
Get the Best Quote for Duplex Plug Gaskets. We Stock Duplex Plug Gaskets in Various Sizes, Dimensions and Specifications. Contact Us Today for a Competitive Quote.
Duplex Plug Gasket Specifications
| Property | Duplex 2205 (UNS S31803 / S32205) |
|---|---|
| Material Grade | Duplex Stainless Steel 2205, UNS S31803 / S32205 |
| Density | 7.80 g/cm³ |
| Melting Point | 1350–1400°C |
| Gasket Type | Duplex Stainless Steel Plug Gasket |
| Size Range | Standard and custom sizes available |
| Pressure Rating | Custom-engineered to meet project requirements and applicable standards |
| Temperature Range | Suitable for high-temperature and high-pressure applications, depending on grade and service conditions |
| Corrosion Resistance | Excellent resistance to pitting, crevice corrosion and stress-corrosion cracking |
| Applications | Heat Exchangers, Boilers, Condensers, Pressure Vessels, Oil & Gas Equipment and Industrial Piping Systems |
Duplex Plug Gasket Chemical Composition
| Element | Duplex 2205 (S31803) | Duplex 2205 (S32205) |
|---|---|---|
| Carbon, C | 0.030 max | 0.030 max |
| Manganese, Mn | 2.00 max | 2.00 max |
| Silicon, Si | 1.00 max | 1.00 max |
| Phosphorus, P | 0.030 max | 0.030 max |
| Sulfur, S | 0.020 max | 0.020 max |
| Chromium, Cr | 21.0 – 23.0 | 22.0 – 23.0 |
| Molybdenum, Mo | 2.5 – 3.5 | 3.0 – 3.5 |
| Nickel, Ni | 4.5 – 6.5 | 4.5 – 6.5 |
| Nitrogen, N | 0.08 – 0.20 | 0.14 – 0.20 |
| Iron, Fe | Balance | Balance |
You need our support, to
have any projects?
Duplex Plug Gasket Mechanical Properties
| Property | Duplex 2205 (UNS S31803) | Duplex 2205 (UNS S32205) |
|---|---|---|
| Tensile Strength | 620 MPa (90 ksi) min | 655 MPa (95 ksi) min |
| Yield Strength (0.2% Offset) | 450 MPa (65 ksi) min | 450 MPa (65 ksi) min |
| Elongation | 25% min | 25% min |
| Hardness | 31 HRC max | 31 HRC max |
| Density | 7.80 g/cm³ | 7.80 g/cm³ |
| Impact Strength | High toughness and impact resistance | High toughness and impact resistance |
Ready Stock of Duplex Plug Gasket
Duplex Plug Gasket Application Industries
