ISO 898-1 GR 12.9 Bolts, ISO 898-1 GR 12.9 Stud Bolts, Heavy Hex Bolts & 12.9 Bolting Supplier in Mumbai, India

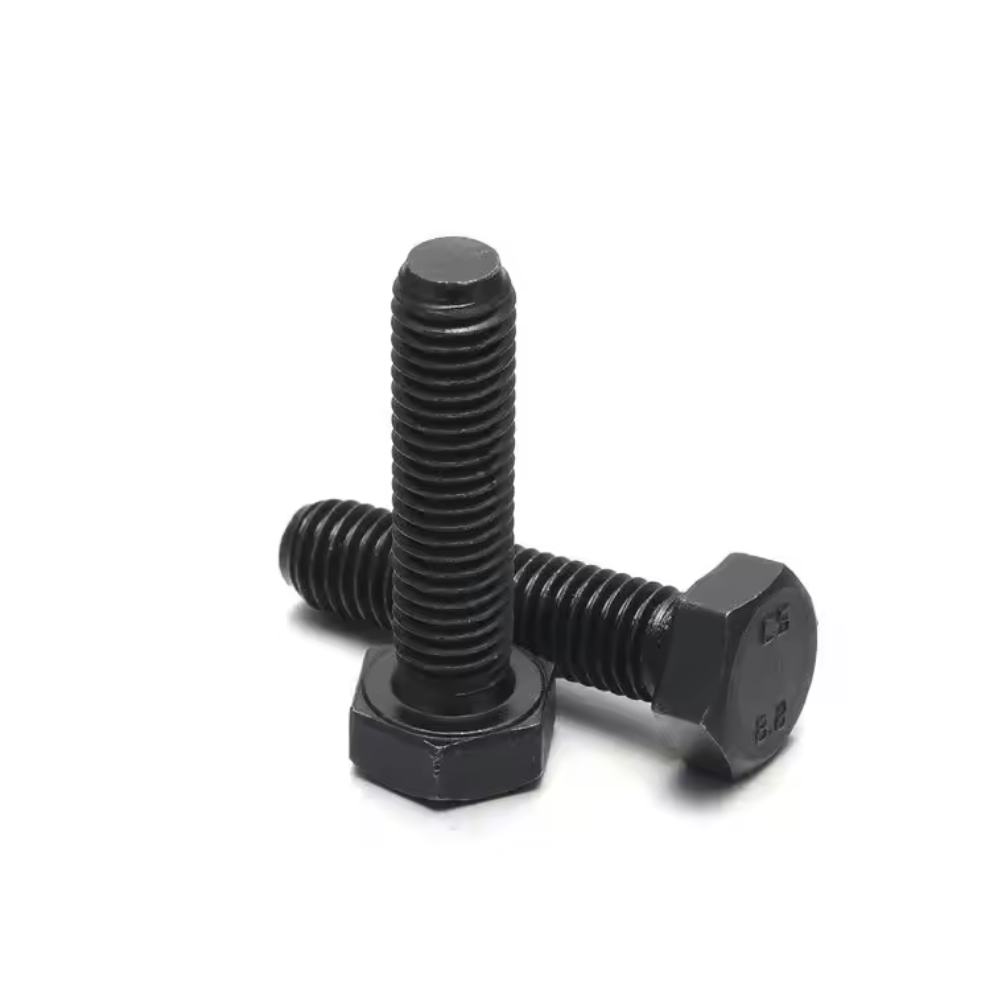

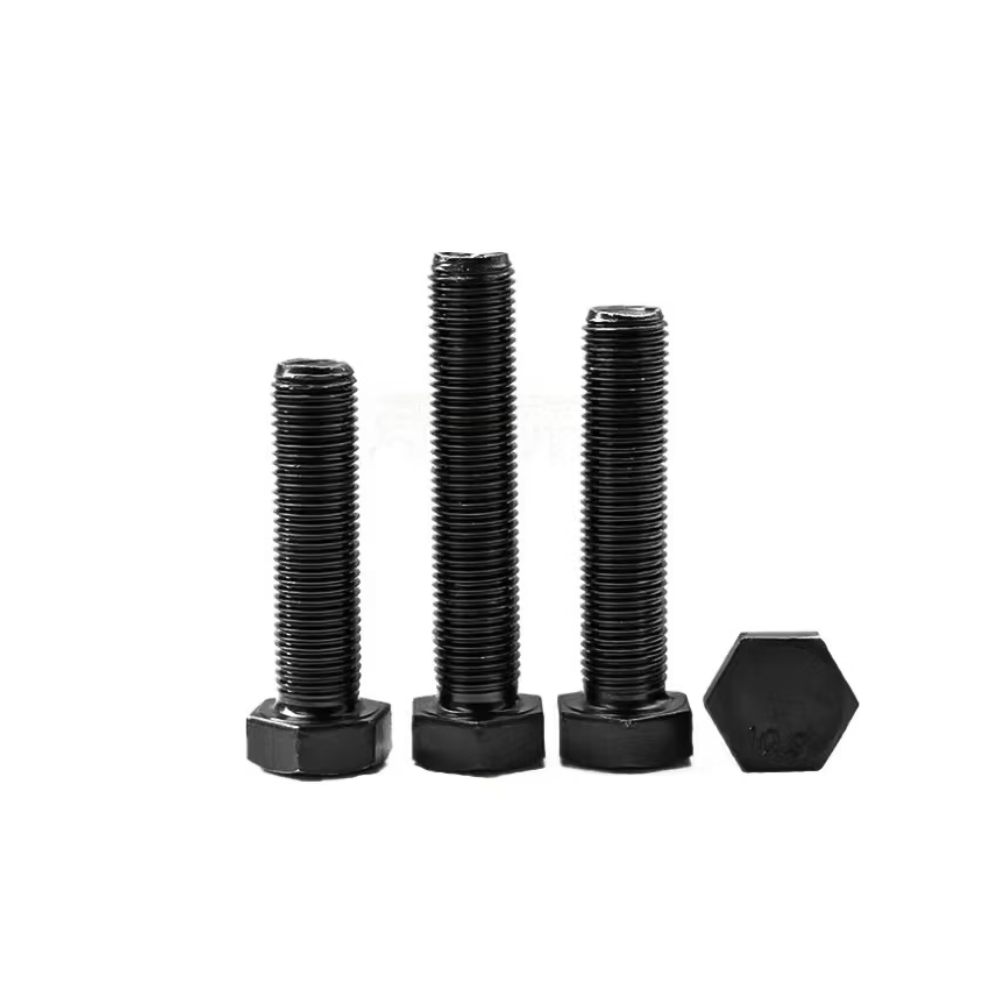

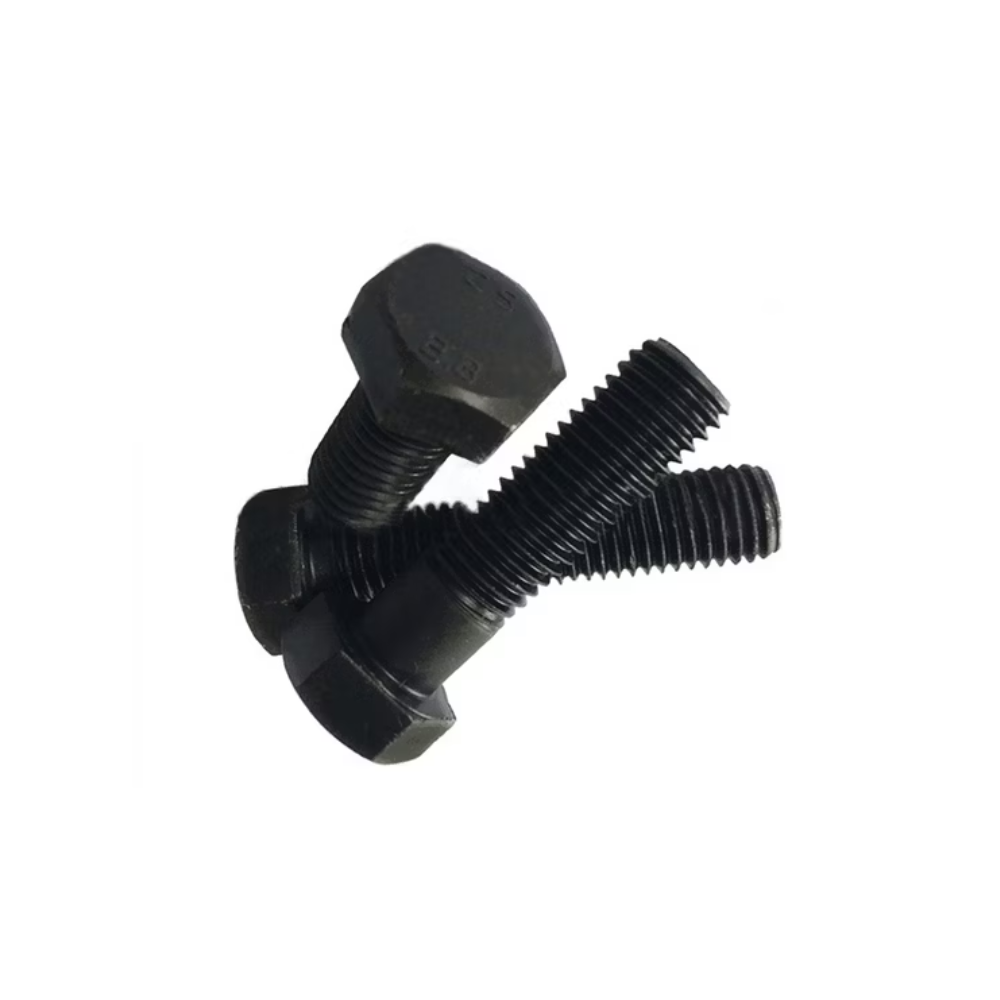

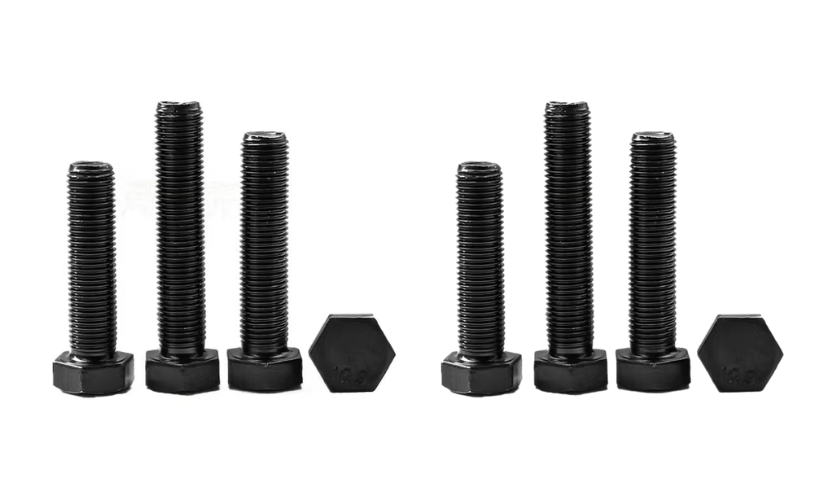

Unifit Metal Alloys is a manufacturer, supplier, stockist and exporter of ISO 898-1 GR 12.9 Bolts in Mumbai, India, supplying high-strength metric fasteners for demanding mechanical, automotive, engineering and industrial applications. Grade 12.9 bolts are designed for heavily loaded joints where high tensile strength and strong clamping capability are essential. We supply these fasteners in various diameters, lengths, thread configurations and finishes to suit standard and project-specific requirements.
ISO 898-1 GR 12.9 Bolts are produced from suitable alloy steel and undergo controlled heat treatment to achieve the high strength associated with this property class. Their combination of tensile strength, yield strength and hardness makes them suitable for applications exposed to substantial mechanical loads and repeated tightening forces. These bolts are generally used with compatible high-strength nuts and washers to form secure and dependable bolted joints.
ISO 898-1 GR 12.9 Bolts, ISO 898-1 GR 12.9 Stud Bolts, Heavy Hex Bolts & 12.9 Bolting Manufacturer and Supplier in Mumbai, India
Grade 12.9 fasteners are commonly specified for automotive components, heavy machinery, hydraulic equipment, machine tools, industrial equipment, construction machinery, power-transmission systems and precision engineering assemblies. Their high-strength characteristics allow designers to achieve secure connections while accommodating demanding load conditions.
At Unifit Metal Alloys, we supply ISO 898-1 GR 12.9 Bolts in multiple sizes, lengths, thread forms and surface finishes. We serve OEMs, fabricators, maintenance contractors and industrial procurement requirements, including bulk orders and customized specifications.
Get the Best Quote for ISO 898-1 GR 12.9 Bolts. We Stock ISO 898-1 GR 12.9 Bolts in Various Diameters, Lengths, Thread Sizes, Specifications and Surface Finishes. Contact Us Today for a Competitive Quote.
ISO 898-1 GR 12.9 Bolts Specifications
| Material | Alloy Steel |
|---|---|
| Grade | ISO 898-1 Property Class 12.9 |
| Standard | ISO 898-1 |
| Product Type | Hex Bolts, Socket Head Cap Screws, Stud Bolts, Screws, Threaded Rods and Custom Fasteners |
| Size Range | M5 to M64 | Custom Sizes Available |
| Length | 10 mm to 1000 mm | Custom Lengths Available |
| Thread Standard | Metric Coarse, Metric Fine and Custom Threads |
| Manufacturing Process | Cold Forged, Hot Forged, Machined and Thread Rolled |
| Heat Treatment | Quenched and Tempered |
| Finish | Plain, Black Oxide, Zinc Plated, Zinc Flake Coated and Custom Finishes |
| Nominal Tensile Strength | 1200 MPa |
| Nominal Yield Strength | 1080 MPa |
| Application | Automotive, Heavy Machinery, Construction, Structural Engineering, Industrial Equipment, Mining Equipment and High-Strength Engineering Applications |
| Packaging | Cartons, Wooden Cases, Pallets, Bulk and Custom Packaging |
Sizes and Thread Specifications for ISO 898-1 GR 12.9 Bolts
| Size | Pitch (mm) | Proof Load (kN) | Tensile Load (kN) |
|---|---|---|---|
| M6 | 1.0 | 11.1 | 14.2 |
| M8 | 1.25 | 20.8 | 26.2 |
| M10 | 1.5 | 33.2 | 41.6 |
| M12 | 1.75 | 49.3 | 61.7 |
| M16 | 2.0 | 93.1 | 116 |
| M20 | 2.5 | 148 | 185 |
| M24 | 3.0 | 214 | 268 |
| M30 | 3.5 | 337 | 422 |
| M36 | 4.0 | 504 | 630 |
You need our support, to
have any projects?
Mechanical Properties of ISO 898-1 GR 12.9 Bolts
| Property | Value (ISO 898-1) |
|---|---|
| Tensile Strength (min) | 1,200 MPa |
| Proof Load Stress | 970 MPa |
| Yield Strength (min) 0.2% offset | 1,080 MPa |
| Hardness (Rockwell C) | 39 – 44 HRC |
| Elongation at Break (min) | 8% |
| Reduction of Area (min) | 44% |
Ready Stock of ISO 898-1 GR 12.9 Bolts
ISO 898-1 GR 12.9 Bolts Application Industries
