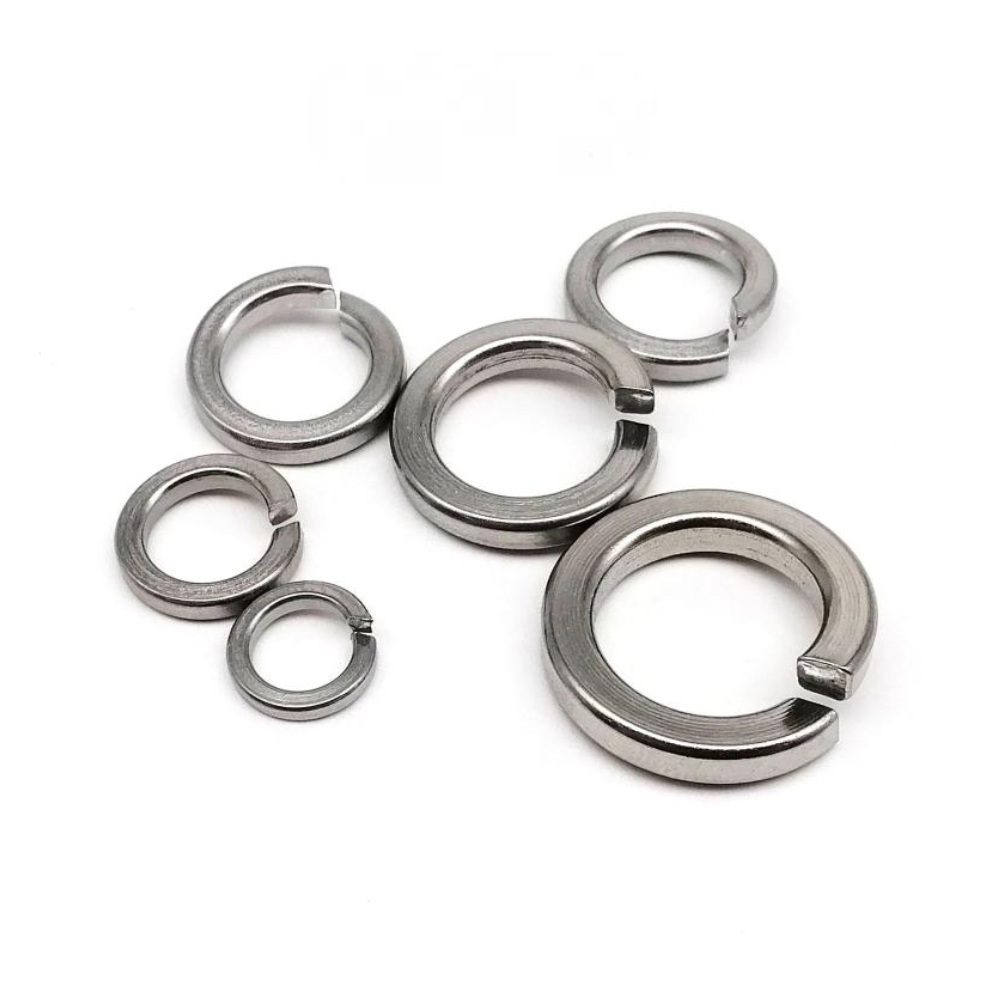

Monel Spring Washer

Monel Spring Washers, Monel 400 & Monel K500 Spring Lock, Split Ring & Helical Washers Supplier in Mumbai, India

Unifit Metal Alloys is a manufacturer, supplier, stockist and exporter of Monel Spring Washers in Mumbai, India, supplying corrosion-resistant fastening components for industrial machinery, engineering equipment, fabrication and mechanical assemblies. These washers are manufactured from Monel alloys selected for their strength and resistance to demanding corrosive service environments. We offer different diameters, thicknesses and configurations to suit a wide range of bolting requirements. Standard and customized dimensions can also be supplied.

Monel Spring Washers are fitted beneath nuts or bolt heads to provide elastic pressure within threaded connections and help maintain fastening stability during operation. Their spring action supports continuous contact between the mating surfaces and helps accommodate minor vibration and movement in the joint. Monel construction provides excellent resistance to seawater, moisture and several aggressive chemical environments, making these washers suitable for specialized industrial service.

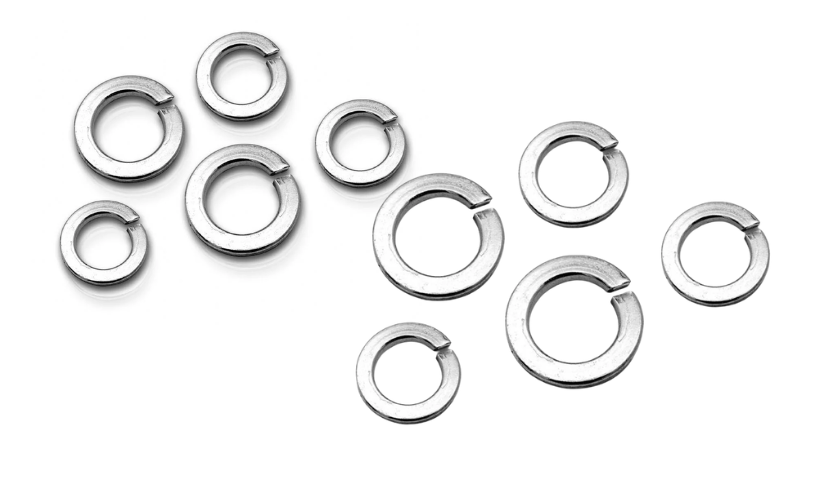

Monel Spring Washer, Monel 400 & Monel K500 Spring Lock, Split Ring & Helical Washer Manufacturer & Supplier in India

These spring washers are commonly used in marine equipment, offshore installations, chemical processing plants, oil and gas systems, desalination equipment, pumps, valves and industrial machinery. Their corrosion-resistant construction makes them particularly useful in applications exposed to seawater, chlorides and other harsh process conditions. Different washer sizes, thicknesses and configurations can be supplied according to bolt dimensions and assembly requirements.

At Unifit Metal Alloys, we supply Monel Spring Washers in various sizes, material grades, thicknesses and finishes for standard as well as specialized applications. We cater to maintenance requirements, bulk quantities and industrial project orders.

Get the Best Quote for Monel Spring Washers. We Stock Monel Spring Washers in Various Diameters, Thicknesses, Sizes, Grades, Types and Surface Finishes. Contact Us Today for a Competitive Quote.

Specifications of Monel Spring Washer

Material Monel
Grades Monel 400, Monel K500
UNS N04400, N05500
Equivalent Grades Alloy 400, Alloy K500
Standard DIN 127, DIN 7980, ASME B18.21.1, ISO 8748
Size Range M3 to M100
Type Split Lock Washer, Helical Spring Washer
Shape Split, Helical
Surface Finish Plain, Polished
Manufacturing Process Cold Formed, Stamped, Heat Treated
Corrosion Resistance Excellent Resistance to Seawater, Acids, Alkalis and Marine Environments
Temperature Resistance High Temperature Service
Application Marine, Chemical Processing, Oil & Gas, Petrochemical, Power Generation, Shipbuilding
Packaging Boxes, Cartons, Bulk, Individual Packs

Monel Spring Washer Dimensions Chart

Size Inside Diameter (mm) Outside Diameter (mm) Thickness (mm)
M3 3.2 6.0 0.5
M4 4.3 7.0 0.8
M5 5.3 9.0 1.0
M6 6.4 10.0 1.6
M8 8.4 13.0 2.0
M10 10.5 17.0 2.5
M12 13.0 21.0 3.0
M14 15.0 24.0 3.0
M16 17.0 27.0 3.5
M18 19.0 30.0 3.5
M20 21.0 34.0 4.0
M22 23.0 37.0 4.0
M24 25.0 40.0 5.0
M27 28.0 44.0 5.0
M30 31.0 50.0 6.0

You need our support, to
have any projects?

Size Chart of Monel Spring Washer

Size Inside Diameter (mm) Outside Diameter (mm) Thickness (mm)
M3 3.2 6.0 0.5
M4 4.3 7.0 0.8
M5 5.3 9.0 1.0
M6 6.4 10.0 1.6
M8 8.4 13.0 2.0
M10 10.5 17.0 2.5
M12 13.0 21.0 3.0
M14 15.0 24.0 3.0
M16 17.0 27.0 3.5
M18 19.0 30.0 3.5
M20 21.0 34.0 4.0
M22 23.0 37.0 4.0
M24 25.0 40.0 5.0
M27 28.0 44.0 5.0
M30 31.0 50.0 6.0

Ready Stock of Monel Spring Washer

Monel 400 Spring Washers
Monel K500 Spring Washers
Monel UNS N04400 Spring Washers
Monel UNS N05500 Spring Washers
Monel 400 Spring Lock Washers
Monel K500 Spring Lock Washers
Monel Split Ring Washers
Monel Helical Spring Washers
Monel Heavy Duty Spring Washers
Monel Corrosion Resistant Spring Washers

Monel Spring Washer Application Industries

Refineries
90%
Oil and Gas Industry
96%
Power Generation
80%
Pharmaceutical Equipment
85%
Pulp & Paper Industry
88%
