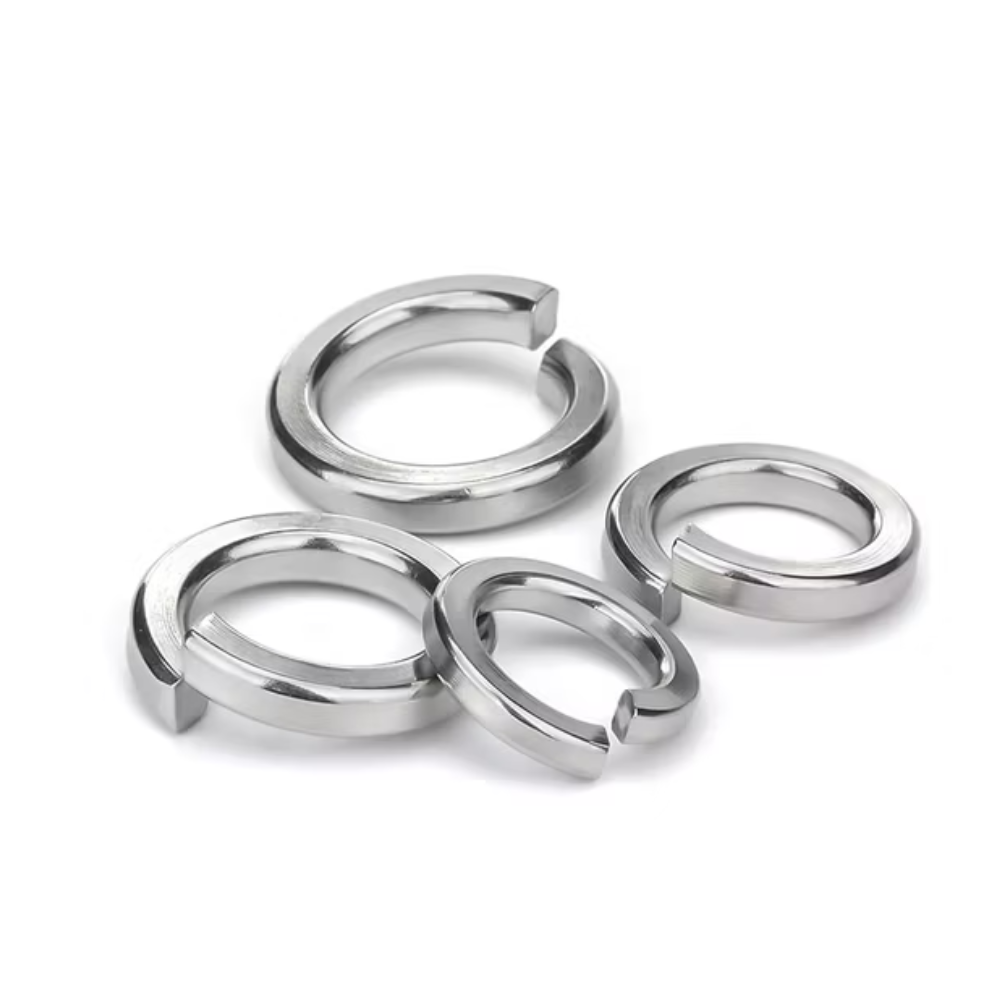

SS 904L Spring Washers, Stainless Steel 904L Spring Lock, Split Ring & Helical Washers Supplier in Mumbai, India
Unifit Metal Alloys is a manufacturer, supplier, stockist and exporter of SS 904L Spring Washers in Mumbai, India, supplying corrosion-resistant fastening components for engineering equipment, industrial machinery, fabrication work and specialized assemblies. These washers are manufactured from 904L stainless steel, a high-alloy austenitic grade selected for applications requiring strong resistance to corrosive and acidic environments. We offer different diameters, thicknesses and configurations to suit varied fastening requirements. Standard and customized dimensions can also be supplied.
SS 904L Spring Washers are fitted beneath nuts or bolt heads to create spring pressure within threaded connections and help maintain the stability of bolted joints during operation. Their resilient construction helps preserve contact pressure between fastening surfaces while accommodating minor movement and vibration. The 904L stainless steel composition provides excellent resistance to pitting, crevice corrosion and a wide range of aggressive chemical media, making these washers suitable for demanding service conditions.

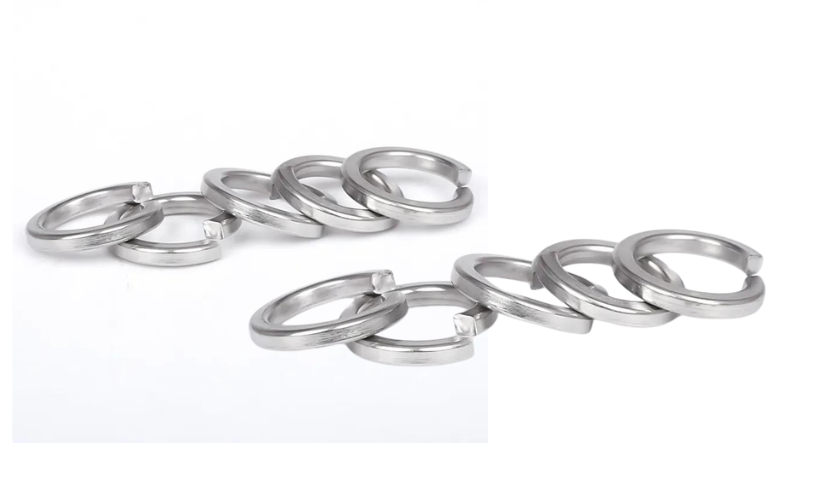

SS 904L Spring Washer, Stainless Steel 904L Spring Lock, Split Ring & Helical Washer Manufacturer & Supplier in India
These spring washers are commonly used in chemical processing equipment, pharmaceutical plants, petrochemical systems, marine installations, pollution-control equipment, heat exchangers, storage tanks and industrial processing machinery. SS 904L is particularly useful in environments where resistance to sulfuric acid and other corrosive process media is required. Different washer dimensions can be supplied according to the bolt size, joint design and operating conditions.
At Unifit Metal Alloys, we supply SS 904L Spring Washers in various sizes, thicknesses, configurations and surface finishes for standard and specialized industrial applications. We cater to maintenance requirements, bulk orders and project-based supplies.
Get the Best Quote for SS 904L Spring Washers. We Stock Stainless Steel 904L Spring Washers in Various Diameters, Thicknesses, Sizes, Grades, Types and Surface Finishes. Contact Us Today for a Competitive Quote.
Specifications of SS 904L Spring Washer
| Material | Stainless Steel 904L |
|---|---|
| Grade | SS 904L |
| UNS | N08904 |
| Werkstoff No. | 1.4539 |
| EN | X1NiCrMoCu25-20-5 |
| Equivalent Grade | 904L |
| Standard | DIN 127, DIN 7980, ASME B18.21.1, ISO 8748 |
| Size Range | M3 to M100 |
| Type | Split Lock Washer, Helical Spring Washer |
| Shape | Split, Helical |
| Surface Finish | Plain, Polished, Passivated |
| Manufacturing Process | Cold Formed, Stamped, Heat Treated |
| Corrosion Resistance | Excellent Resistance to Pitting, Crevice Corrosion and Stress Corrosion Cracking |
| Temperature Resistance | High Temperature Service |
| Application | Chemical Processing, Petrochemical, Marine, Oil & Gas, Pharmaceutical, Power Generation |
| Packaging | Boxes, Cartons, Bulk, Individual Packs |
SS 904L Spring Washer Weight Chart
| Size | Approx. Weight per 1000 Pieces (kg) |
|---|---|
| M3 | 0.08 |
| M4 | 0.14 |
| M5 | 0.25 |
| M6 | 0.48 |
| M8 | 0.95 |
| M10 | 1.75 |
| M12 | 3.00 |
| M14 | 3.90 |
| M16 | 5.20 |
| M18 | 6.80 |
| M20 | 9.20 |
| M22 | 11.00 |
| M24 | 14.00 |
| M27 | 17.50 |
| M30 | 22.00 |
You need our support, to
have any projects?
Equivalent Grade of SS 904L Spring Washer
| Grade | UNS | Werkstoff No. | EN | Equivalent Grade |
|---|---|---|---|---|
| SS 904L | N08904 | 1.4539 | X1NiCrMoCu25-20-5 | 904L |
Ready Stock of SS 904L Spring Washer
