Stainless Steel RTJ Gaskets

Stainless Steel RTJ Gaskets, SS Oval & Octagonal Ring-Type Joint Gaskets Supplier in Mumbai, India

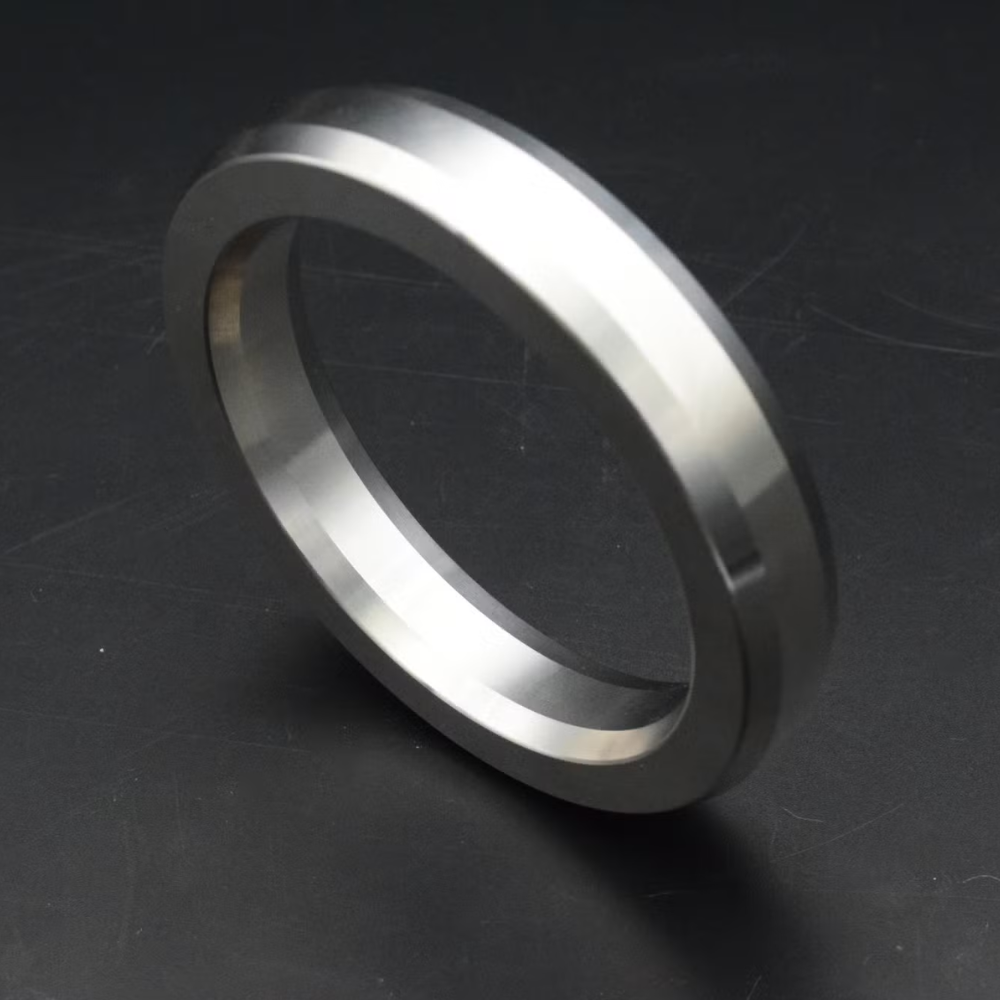

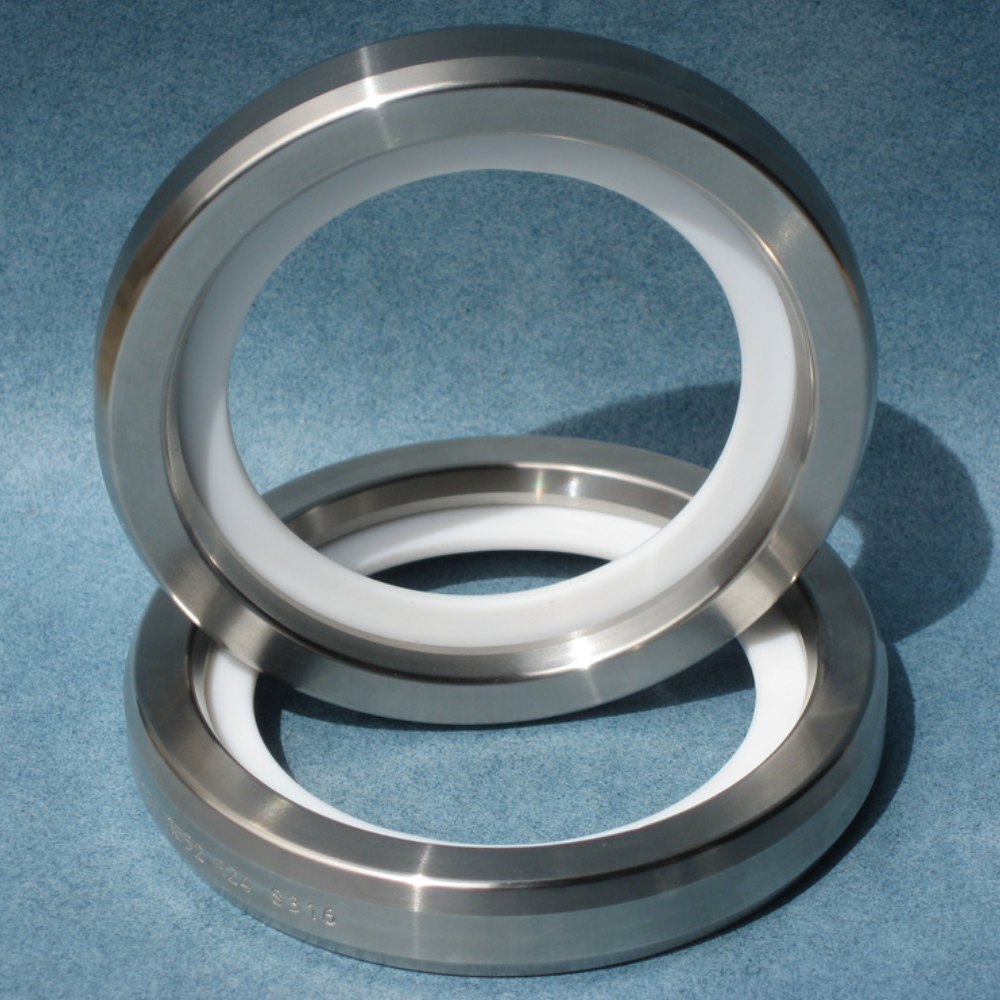

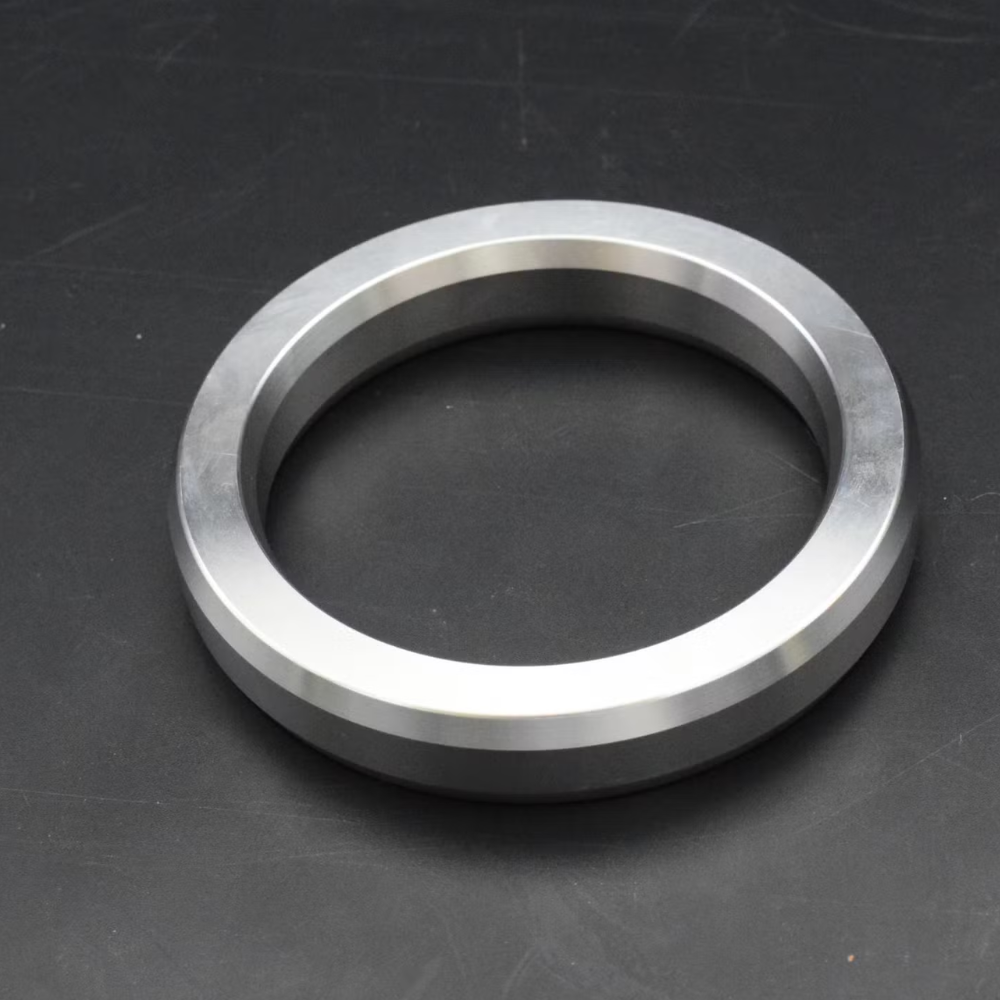

Unifit Metal Alloys is a manufacturer, supplier, stockist and exporter of Stainless Steel Ring-Type Joint (RTJ) Gaskets in Mumbai, India, supplying metallic sealing products for high-pressure piping, valves, pressure vessels and demanding industrial systems. These gaskets are manufactured from stainless steel materials selected for their strength, corrosion resistance and suitability for elevated-temperature service. We offer different ring profiles, dimensions, material grades and specifications to meet a wide range of flange sealing requirements. Standard and customized sizes can also be supplied.

Stainless Steel RTJ Gaskets are designed to fit into precision-machined ring grooves between RTJ flanges. When the flange assembly is tightened, the metallic ring is compressed against the groove surfaces to establish a dependable metal-to-metal seal. This sealing arrangement helps contain pressurized liquids and gases and is particularly suitable for applications where high sealing reliability is required.

Stainless Steel RTJ Gasket, SS Oval & Octagonal Ring-Type Joint Gasket Manufacturer & Supplier in India

Stainless steel construction provides good resistance to moisture, oxidation and corrosive process environments, making these RTJ gaskets suitable for demanding service conditions. They are commonly used in oil and gas pipelines, refineries, petrochemical plants, offshore platforms, chemical processing units, power plants, pressure vessels and high-pressure valve systems. Available profiles include oval and octagonal rings, along with other RTJ configurations selected according to the flange standard and application.

At Unifit Metal Alloys, we supply Stainless Steel RTJ Gaskets in various stainless steel grades, ring profiles, sizes and specifications. Each gasket can be supplied according to the required flange dimensions and service conditions.

Get the Best Quote for Stainless Steel RTJ Gaskets. We Stock Stainless Steel RTJ Gaskets in Various Ring Sizes, Dimensions, Profiles, Grades, Materials and Surface Finishes. Contact Us Today for a Competitive Quote.

Specifications of Stainless Steel RTJ Gaskets

Characteristic Specification Details
Material / Grades SS 304, 304L, 316, 316L, 321, 347, 410, 440A
Manufacturing Standards API 6A, ASME B16.20, ANSI B16.20
Size Range ½″ NB to 24″ NB (custom sizes available)
Pressure Class 150#, 300#, 600#, 900#, 1500#, 2500# | 3,000 PSI to 20,000 PSI
Gasket Profiles / Types Oval (R), Octagonal (R), RX, BX, SRX, SBX
Hardness (Brinell) SS 304/316: ≤130 HBW | SS 410/440A: ≤170 HBW (per API 6A)
Surface Finish 63 Ra (μin) or as specified per ASME B16.20
Testing Dimensional Inspection, Hardness Testing, Material Test Report (MTR/MTC)
Temperature Range -196°C to +870°C (grade-dependent)
Documentation EN 10204 3.1 / 3.2 Mill Test Certificate, Heat & Lot Traceability

Stainless Steel RTJ Gaskets Size Chart

Nominal Pipe Size Ring Number Inside Diameter (mm) Outside Diameter (mm) Height (mm)
1/2″ R11 22.10 31.75 6.35
3/4″ R13 27.50 36.50 6.35
1″ R16 34.30 43.00 6.35
1-1/4″ R18 43.10 51.80 6.35
1-1/2″ R20 49.20 58.90 6.35
2″ R23 61.90 72.60 6.35
2-1/2″ R26 74.60 85.30 6.35
3″ R31 90.70 103.10 6.35
4″ R37 115.80 127.00 6.35
5″ R41 140.80 152.40 6.35
6″ R45 167.40 180.90 6.35
8″ R49 218.40 233.40 6.35
10″ R53 273.10 288.90 6.35
12″ R57 323.90 339.70 6.35
14″ R61 355.60 371.60 6.35
16″ R65 406.40 422.40 6.35
18″ R69 457.20 473.20 6.35
20″ R73 508.00 524.00 6.35
24″ R77 609.60 625.60 6.35

You need our support, to
have any projects?

Get Free Quotes
Contact Us

Dimensions of Stainless Steel RTJ Gaskets

Ring Number Nominal Pipe Size Inside Diameter (mm) Outside Diameter (mm) Height (mm)
R11 1/2″ 22.10 31.75 6.35
R13 3/4″ 27.50 36.50 6.35
R16 1″ 34.30 43.00 6.35
R18 1-1/4″ 43.10 51.80 6.35
R20 1-1/2″ 49.20 58.90 6.35
R23 2″ 61.90 72.60 6.35
R26 2-1/2″ 74.60 85.30 6.35
R31 3″ 90.70 103.10 6.35
R37 4″ 115.80 127.00 6.35
R41 5″ 140.80 152.40 6.35
R45 6″ 167.40 180.90 6.35
R49 8″ 218.40 233.40 6.35
R53 10″ 273.10 288.90 6.35
R57 12″ 323.90 339.70 6.35
R61 14″ 355.60 371.60 6.35
R65 16″ 406.40 422.40 6.35
R69 18″ 457.20 473.20 6.35
R73 20″ 508.00 524.00 6.35
R77 24″ 609.60 625.60 6.35

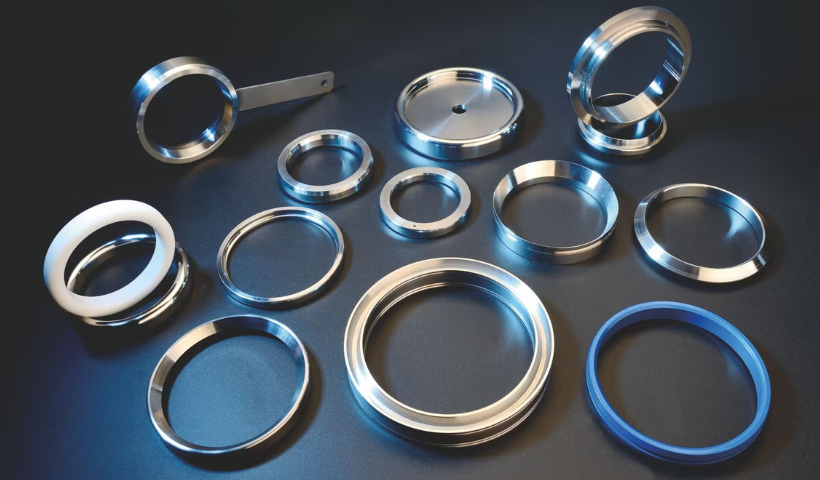

Ready Stock of Stainless Steel RTJ Gaskets

SS 304 RTJ Gaskets
SS 304L RTJ Gaskets
SS 316 RTJ Gaskets
SS 316L RTJ Gaskets
SS 321 RTJ Gaskets
SS 347 RTJ Gaskets
Stainless Steel Oval RTJ Gaskets
Stainless Steel Octagonal RTJ Gaskets
Stainless Steel R-Type RTJ Gaskets
Stainless Steel RX-Type RTJ Gaskets

Stainless Steel RTJ Gaskets Application Industries

Refineries
90%
Oil and Gas Industry
96%
Power Generation
80%
Pharmaceutical Equipment
85%
Pulp & Paper Industry
88%
