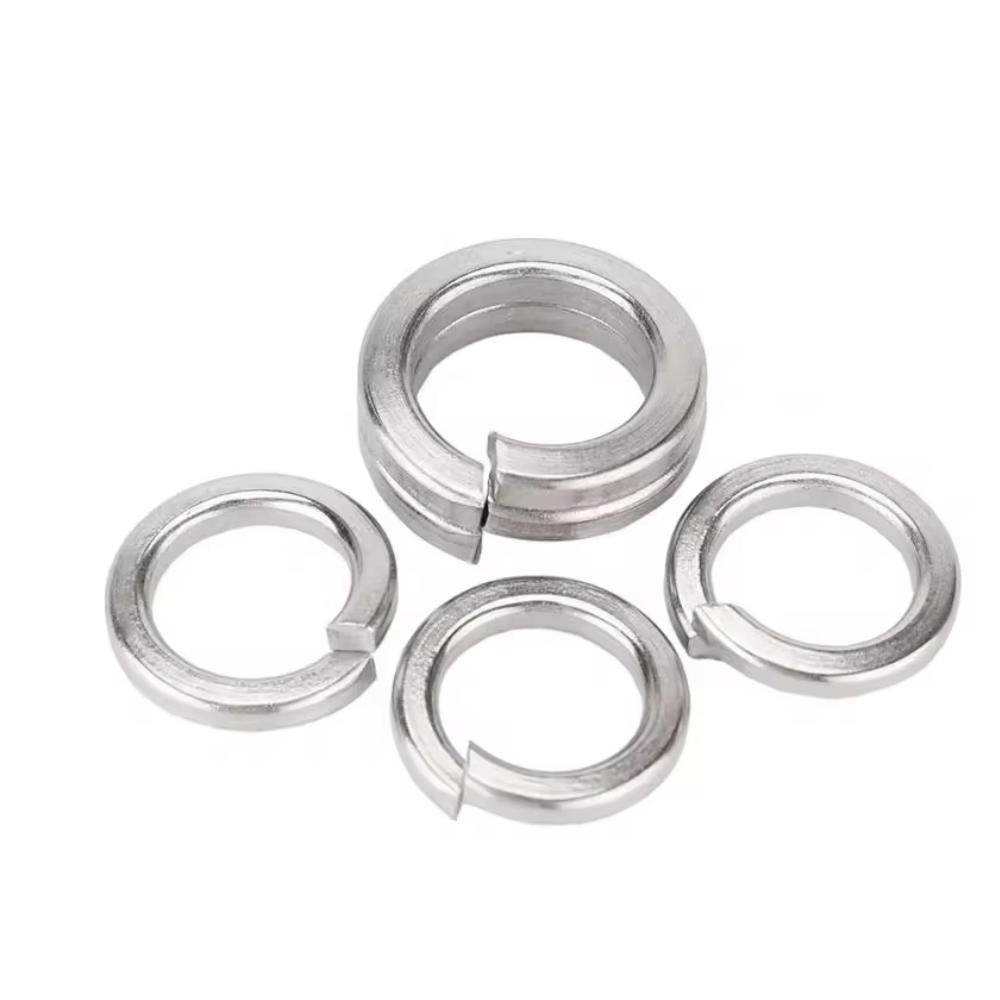

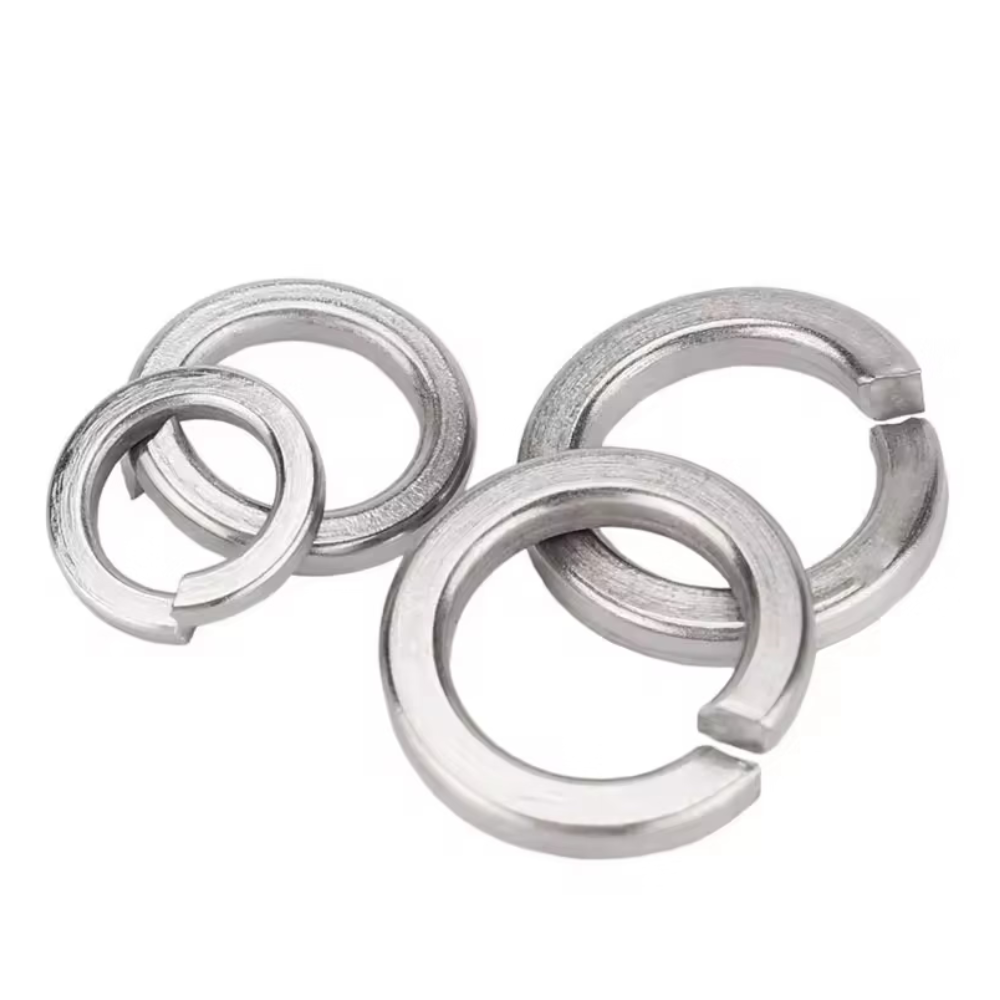

Stainless Steel Spring Washer

Stainless Steel Spring Washers, SS 304 & SS 316 Spring Lock, Split Ring & Helical Washers Supplier in Mumbai, India

Unifit Metal Alloys is a manufacturer, supplier, stockist and exporter of Stainless Steel Spring Washers in Mumbai, India, supplying locking and fastening components for engineering, machinery, fabrication and industrial applications. These washers are manufactured from stainless steel to provide spring action along with good resistance to corrosion and environmental exposure. We supply different outside diameters, inside diameters, thicknesses and material grades to meet varied fastening requirements. Standard and customized specifications can also be supplied.

Stainless Steel Spring Washers are fitted beneath nuts or bolt heads to create tension within threaded connections and help maintain joint stability during operation. Their resilient construction applies a continuous spring load to the assembly, helping reduce the possibility of loosening caused by vibration, movement and repeated loading. Stainless steel construction makes them suitable for applications where durability and resistance to rust are important.

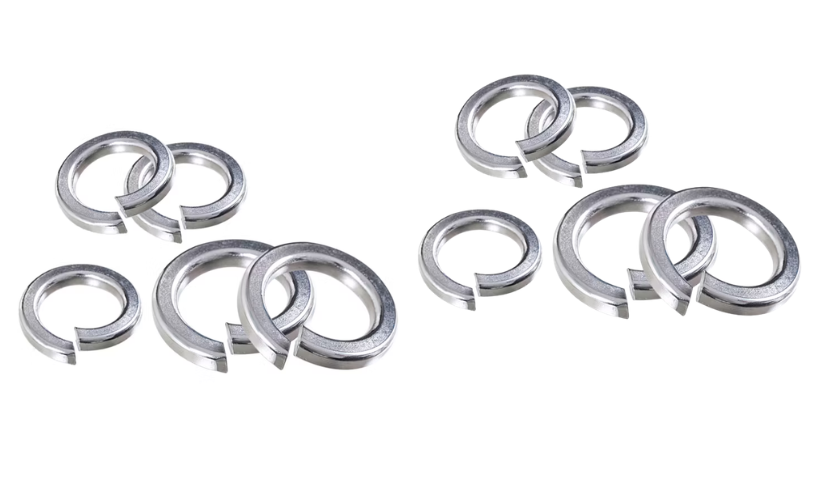

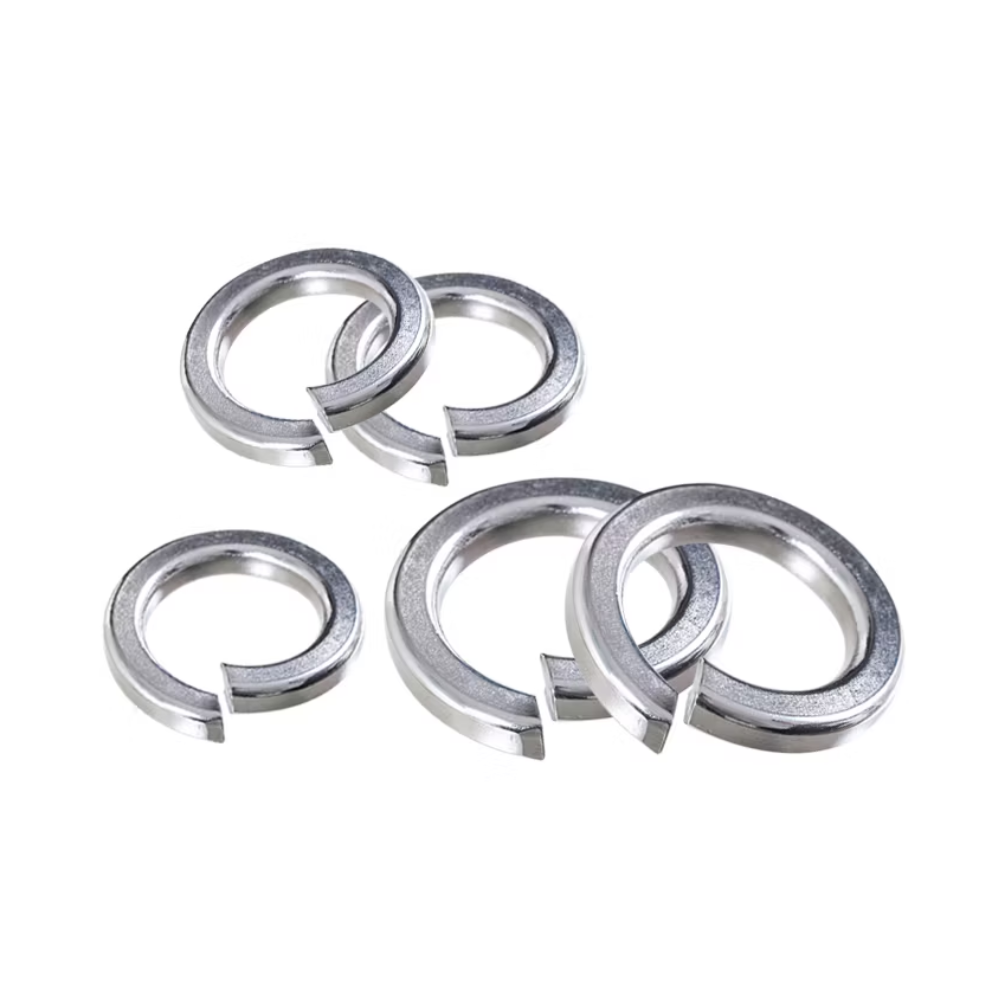

Stainless Steel Spring Washer, SS 304 & SS 316 Spring Lock, Helical & Wave Washer Manufacturer & Supplier in India

These spring washers are widely used in industrial machinery, automotive assemblies, electrical equipment, construction equipment, fabrication projects, marine applications and general engineering systems. They are available in different sizes and thicknesses to suit various bolt and nut combinations. Stainless steel grades can be selected according to the operating environment and required corrosion resistance.

At Unifit Metal Alloys, we supply Stainless Steel Spring Washers for standard fastening requirements as well as specialized industrial applications. We can provide washers in different dimensions, grades and finishes according to customer specifications.

Get the Best Quote for Stainless Steel Spring Washers / Split Ring Washers. We Stock Stainless Steel Spring Washers / Split Ring Washers in Various Diameters, Thicknesses, Sizes, Grades and Surface Finishes. Contact Us Today for a Competitive Quote.

Specifications of Stainless Steel Spring Washer

Specifications
Specifications of Spring Washers ASME SA193 ASTM A193
Standard of Stainless Steel Wave Spring Washer DIN 127, BS 1802-1951, IS 3063-1994, ASTM, DIN, BS and all International Standards
Curved Split Lock Spring Washe Length M20, M16, M42, M10, M18, M48, M8, M22
Rectangular Section Spring Washer Size 3 to 52 in MM

Stainless Steel Spring Washer Dimensions Chart

NOM SIZE Inner Dia (d) Basic Tol (+) Outer Dia (d1) Max WIDTH (b) Basic Tol (+ or -) THICKNESS (S) Tol (+ or -) Weight per 1000 in Kgs
3 3.1 0.3 6.2 1.3 0.1 0.8 0.1 0.11
4 4.1 0.3 7.6 1.5 0.1 0.9 0.1 0.18
5 5.1 0.3 9.2 1.8 0.1 1.2 0.1 0.36
6 6.1 0.4 11.8 2.5 0.15 1.6 0.1 0.83
8 8.1 0.4 14.8 3 0.15 2 0.1 1.60
10 10.2 0.5 18.1 3.5 0.2 2.2 0.15 2.53
12 12.2 0.5 21.1 4 0.2 2.5 0.15 3.82
14 14.2 0.5 24.1 4.5 0.2 3 0.15 6.01
16 16.2 0.8 27.4 5 0.2 3.5 0.2 8.91
18 18.2 0.8 29.4 5 0.2 3.5 0.2 9.73
20 20.2 1 33.6 6 0.2 4 0.2 15.20
22 22.5 1 35.9 6 0.2 4 0.2 16.50
24 24.5 1 40 7 0.25 5 0.2 26.20
27 27.5 1 43 7 0.25 5 0.2 28.70
30 30.5 1.2 48.2 8 0.25 6 0.2 44.30
33 33.5 1.2 55.2 10 0.25 6 0.2 63.00
36 36.5 1.2 58.2 10 0.25 6 0.2 67.30
39 39.5 1.2 61.2 10 0.25 6 0.2 71.70
42 42.5 1.2 68.2 12 0.25 7 0.25 111.00
45 45.5 1.2 71.2 12 0.25 7 0.25 117.00
48 49 1.5 75 12 0.25 7 0.25 123.00
52 53 1.5 83 14 0.25 8 0.25 182.00

You need our support, to
have any projects?

Get Free Quotes
Contact Us

Size Chart of Stainless Steel Spring Washer

SIZE IN INCHES SIZE IN MM FLAT SECTIONWIDTH X THICKNESS SQUARE SECTIONWIDTH AND THICKNESS
1/8” .18 .2 X 0.8
5/32” .97 .6 X 0.8
3/16” .76 .3 X 1.2 .6
¼” .35 .3 X 1.6 .8
5/16” .94 .3 X 1.6
3/8” .53 .7 X 1.6 .3
7/16” 1.11 .1 X 1.6 .6
½” 2.70 .1 X 2.3
9/16” 4.29 .9 X 2.3 .3
5/8” 5.88 .9 X 3.3 .7
¾” 9.05 .9 X 3.3 .5
7/8” 2.23 .4 X 3.3 .4
1” 5.40 .1 X 4.7 .9

Ready Stock of Stainless Steel Spring Washer

Stainless Steel Spring Washers
SS 304 Spring Washers
SS 316 Spring Washers
SS 316L Spring Washers
Stainless Steel Split Ring Washers
Stainless Steel Spring Lock Washers
Stainless Steel Helical Spring Washers
Stainless Steel Heavy Duty Spring Washers
Stainless Steel Conical Spring Washers
Stainless Steel Wave Spring Washers

Stainless Steel Spring Washer Application Industries

Refineries
90%
Oil and Gas Industry
96%
Power Generation
80%
Pharmaceutical Equipment
85%
Pulp & Paper Industry
88%
